Engine Removal/Installation: 2WD

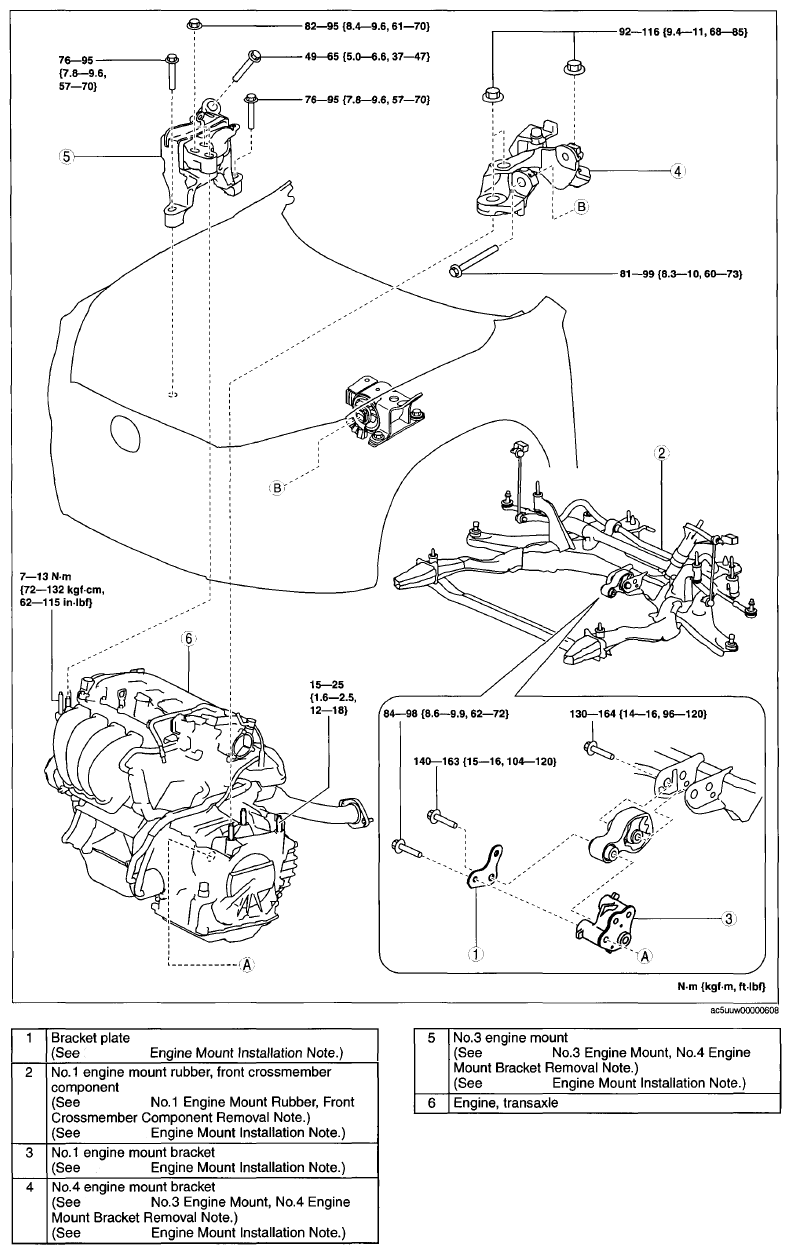

Fig 1: Bracket Plate, Engine Mount Rubbers, Brackets, Nuts And Bolt With Torque Specifications (2WD)
G09074305
