DTC P0091-00: Fuel Pressure Regulator Control Circuit Low Input: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0091:00 |
Fuel pressure regulator control circuit low input |
| DETECTION CONDITION |
- When the PCM turns the spill valve control solenoid valve off but the spill valve control solenoid valve control circuit voltage is low for 5 s
, the PCM determines that the spill valve control solenoid valve control circuit has a malfunction.
MONITORING CONDITIONS
- The following conditions are met:
- Engine speed: 5,700 rpm or less
- Battery voltage: 10.5 V or more
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Stops the high pressure fuel pump control.
- Limits the intake air amount.
|
| POSSIBLE CAUSE |
- High pressure fuel pump connector or terminal malfunction
- PCM connector or terminals malfunction

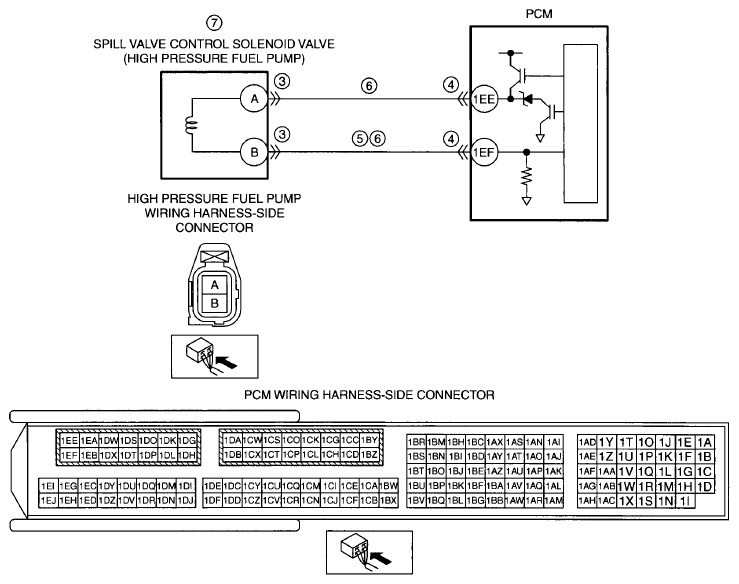

- Short to ground in wiring harness between high pressure fuel pump terminal B and PCM terminal 1EF
- Open circuit in wiring harness between the following terminals:
- High pressure fuel pump terminal A-PCM terminal 1EE
- High pressure fuel pump terminal B-PCM terminal 1EF
- Spill valve control solenoid valve (built-into high pressure fuel pump) malfunction
- PCM malfunction
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
RELATED PIDS
| Monitor item (Definition) |
Unit/Condition |
Condition/Specification (Reference) |
| FUEL_PRES |
KPa {MPa}, mBar {Bar}, psi, in H20 |
- Displays the fuel pressure
|
| V |
- Fuel pressure is 3.0 MPa {31 kgf/cm 2
,435 psi}: approx. 0.92 V
- Fuel pressure is 4.8 MPa {49 kgf/cm 2
,696 psi}: approx. 1.17 V
|
| LOAD |
% |
- Idle (after warm up): approx. 16.07 %
- Racing (engine speed is 2,000 rpm): approx. 14.51 %
- Racing (engine speed is 4,000 rpm): approx. 21.17 %
|
| RPM |
RPM |
- Displays the engine speed
|
