DTC P0123-00: TP Sensor No.1 Circuit High Input: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0123:00 |
TP sensor No.1 circuit high input |
| DETECTION CONDITION |
- If the PCM detects that the TP sensor No.1 voltage at the PCM terminal 1 BP is above 4.9 V
after the ignition is switched to ON, the PCM determines that the TP sensor No.1 circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Restricts the upper limit of the engine speed.
|
| POSSIBLE CAUSE |
- Throttle body connector or terminals malfunction
- PCM connector or terminals malfunction
- TP sensor No.1 malfunction

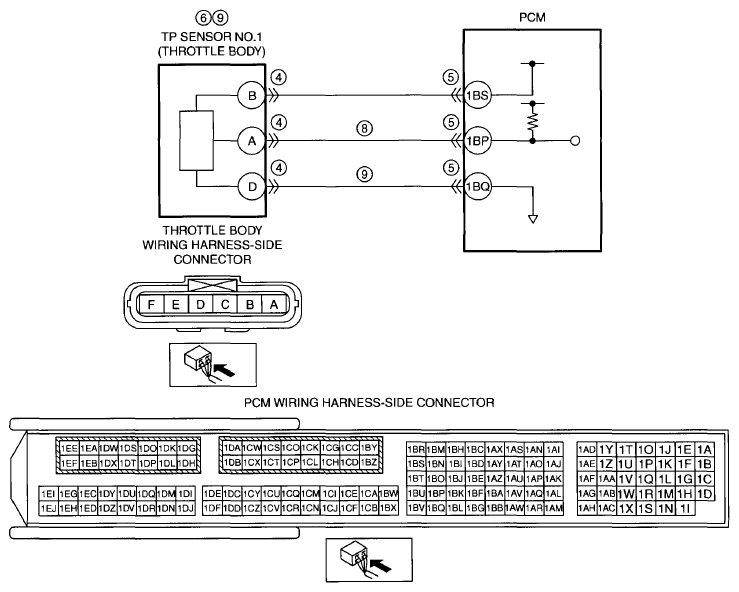

- Short to power supply in wiring harness between throttle body terminal A and PCM terminal 1 BP
- Open circuit in wiring harness between the following terminals:
- Throttle body terminal A-PCM terminal 1BP
- Throttle body terminal D-PCM terminal 1BQ
- PCM malfunction
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
RELATED PIDS
| Monitor item (Definition) |
Unit/Condition |
Condition/Specification (Reference) |
| TP1 |
V |
- Accelerator pedal released: approx. 1.11 V
- Accelerator pedal depressed: approx. 4.59 V
|
| % |
- Accelerator pedal released: approx. 22 %
- Accelerator pedal depressed: approx. 92 %
|
