DTC P025C-00: Fuel Pump Control Module Result Of On-Board Diagnostic Test Low Input: Notes

DETECTION CONDITION AND POSSIBLE CAUSE

DTC P025C:00	Fuel pump control module result of on-board diagnostic test low input
DETECTION CONDITION	Result of on-board test cannot be received from fuel pump control module (voltage is too low). Diagnostic support note  This is a continuous monitor (CCM). The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	-

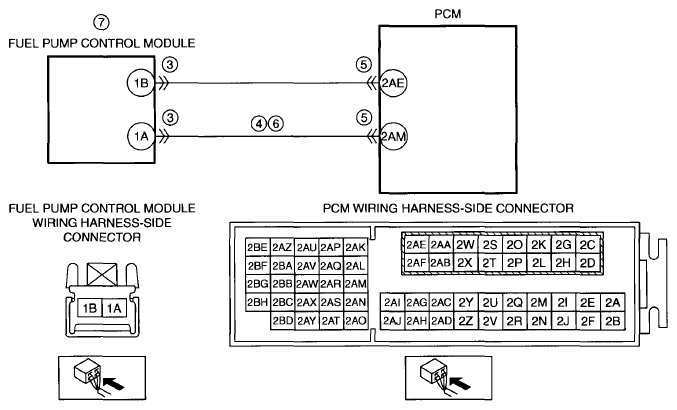

POSSIBLE CAUSE	Fuel pump control module connector or terminals malfunction Short to ground in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AM PCM connector or terminals malfunction Open circuit in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AM Fuel pump control module malfunction PCM malfunction
