DTC P0533-00: Refrigerant Pressure Sensor Circuit High Input: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0533:00 |
Refrigerant pressure sensor circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the refrigerant pressure sensor when the ignition switch is ON. If the input voltage at the PCM terminal 2AX is above 4.9 V
for 5 s
, the PCM determines that the refrigerant pressure sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
- The DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- |
| POSSIBLE CAUSE |
- Refrigerant pressure sensor connector or terminals malfunction
- PCM connector or terminals malfunction
- Refrigerant pressure sensor malfunction

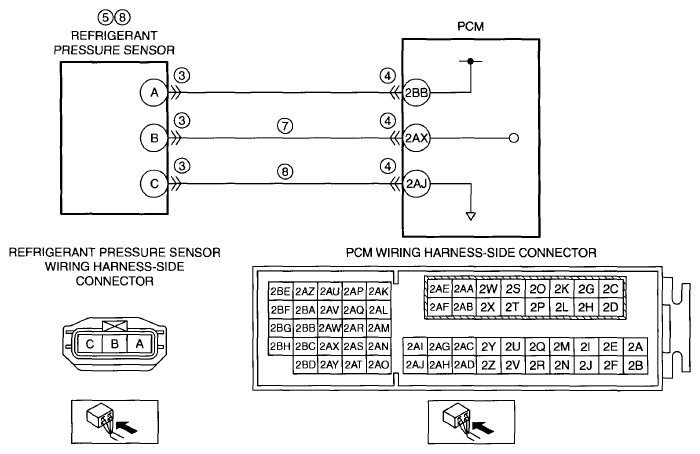

- Short to power supply in wiring harness between refrigerant pressure sensor terminal B and PCM terminal 2AX
- Open circuit in wiring harness between the following terminals:
- Refrigerant pressure sensor terminal B-PCM terminal 2AX
- Refrigerant pressure sensor terminal C-PCM terminal 2AJ
- PCM malfunction
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
RELATED PIDS
| Monitor item (Definition) |
Unit/Condition |
Condition/Specification (Reference) |
| AC_PRES |
KPa {MPa}, mBar {Bar}, psi, in H20 |
- Displays the refrigerant pressure
|
| V |
- Refrigerant pressure is 1.0 MPa {10 kgf/cm 2
, 145 psi}: approx. 1.58 V
- Refrigerant pressure is 1.1 MPa {11 kgf/cm 2
, 160 psi}: 1 approx. 1.75 V
- Refrigerant pressure is 1.2 MPa {12 kgf/cm 2
, 174 psi}: approx. 1.88 V
|
