Keyless Beeper Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION ).
  3. Disconnect the connector.

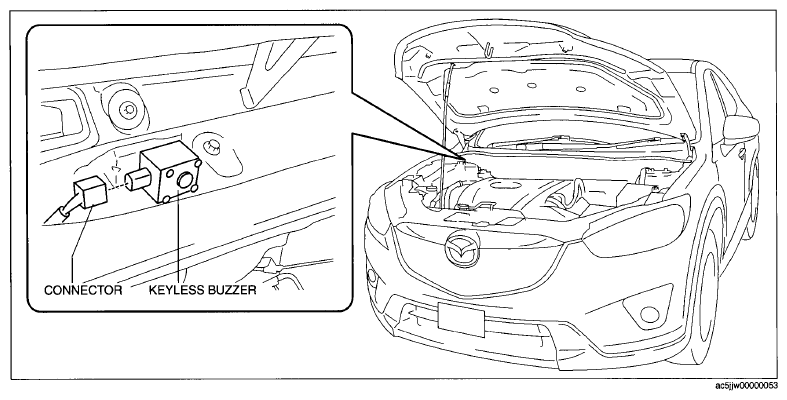

    Fig 1: Identifying Keyless Beeper And Connector
    G09077089
  4. Pull the keyless buzzer in the direction of the arrow (2) shown in the figure while pressing the keyless buzzer tab in the direction of the arrow (1) shown in the figure, detach the keyless buzzer tab and bracket, and then remove the keyless buzzer from the bracket.
  5. Install in the reverse order of removal.
    Fig 2: Removing Keyless Buzzer From Bracket
    G09077090
