Air Hose Installation Note

  1. Install the air hose as shown in the figure.

    Throttle body side

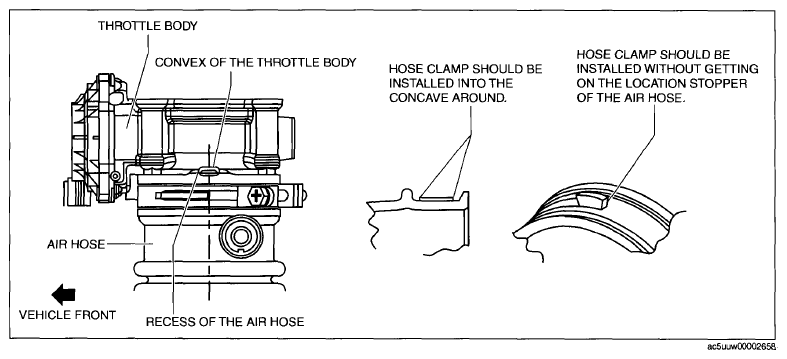

    Fig 1: Identifying Air Hose, Recess Of Air Hose, Throttle Body And Convex Of Throttle Body
    G09074406

    Air cleaner side

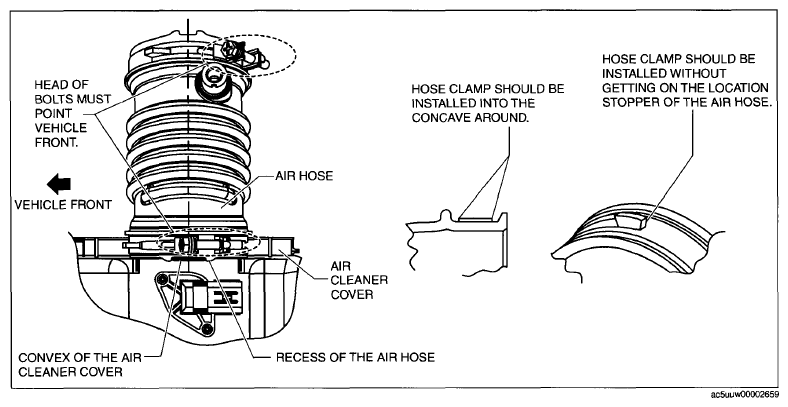

    Fig 2: Identifying Air Hose, Recess Of Air Hose, Air Cleaner Cover And Convex Of Air Cleaner Cover
    G09074407
