Using the diagnostic index

Malfunction symptoms are listed in the diagnostic index under symptom troubleshooting.
The exact malfunction symptoms can be selected by following the index.

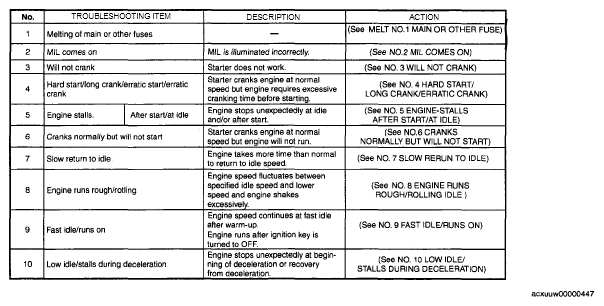

Fig 1: Troubleshooting Chart
Courtesy of MAZDA MOTORS CORP.
