Center Display Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
Remove the bolt.

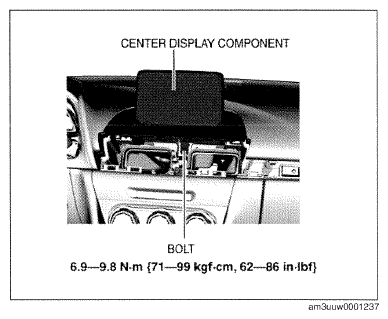

Fig 1: Center Display And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Pull the center display component in the order of arrows (1) and (2) shown in the figure, and detach clips A and B from the dashboard.

Fig 2: Identifying Center Display, Connector And Clips
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.
Remove the center display component.
Remove the connectivity master unit (CMU). (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
