Liftgate Recess Removal/Installation

  1. While pressing the liftgate recess in the direction of arrows (1) shown in the figure, move the liftgate recess in the direction of arrow (2) to detach the liftgate recess tab from the liftgate.

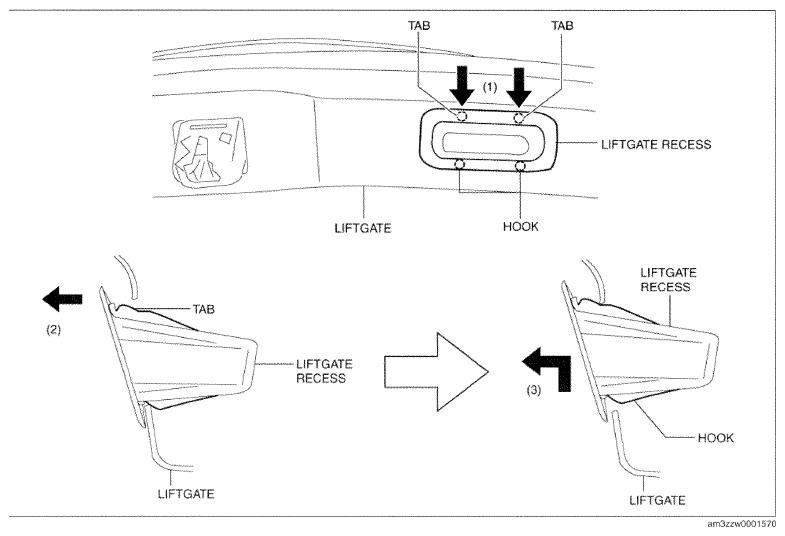

    Fig 1: Pressing Liftgate Recess
    G09772251Courtesy of MAZDA MOTORS CORP.
  2. Remove the liftgate recess in the direction of arrow (3) shown in the figure while detaching the hooks of the liftgate recess.
  3. Install in the reverse order of removal.
