Center Accessory Socket Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the console-up. (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the center accessory socket. (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .)
  4. Connect the tester probe to the position shown in the figure and verify that there is continuity.
    • If it cannot be verified, replace the center accessory socket.

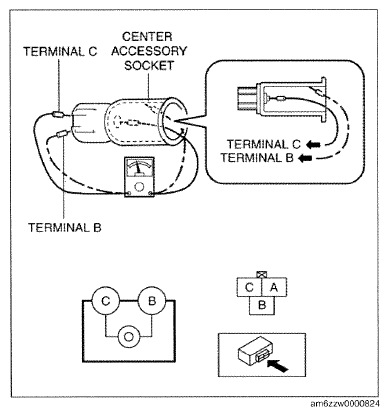

      Fig 1: Connecting Tester Probe To Center Accessory Socket And Terminals
      G09784378Courtesy of MAZDA MOTORS CORP.
