Front Accessory Socket Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
    4. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    8. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    9. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    11. Front accessory socket (See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION .)

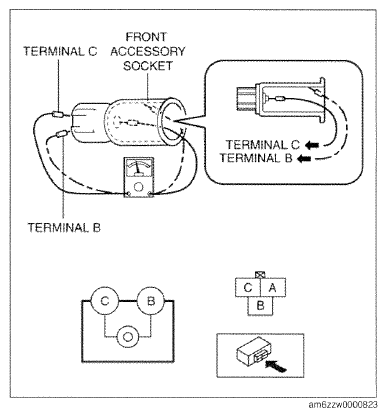

  3. Connect the tester probe to the position shown in the figure and verify that there is continuity. FRONT
    • If it cannot be verified, replace the front accessory socket.
      Fig 1: Connecting Tester Probe To Center Accessory Socket And Terminals
      G09784373Courtesy of MAZDA MOTORS CORP.
