DTC B00A0 1C: Seat Weight Sensor Control Module Circuit Open To Power Supply: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

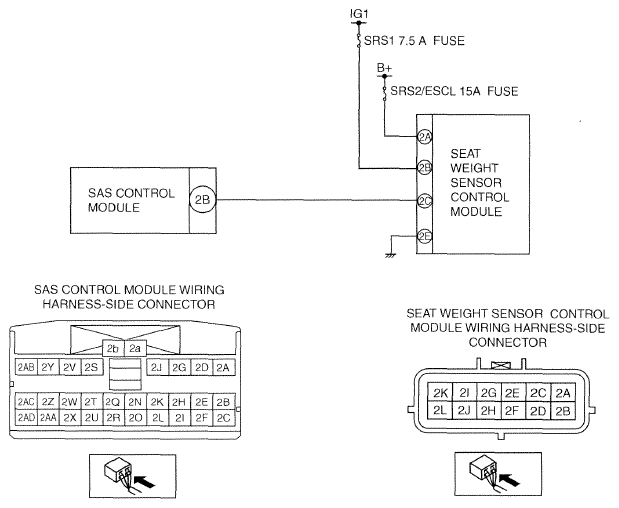

DTC B00A0:1C DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
- Seat weight sensor control module circuit open to power supply
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Malfunction in seat weight sensor control module circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- SRS2/ESCL 15A fuse malfunction
- Seat weight sensor control module connector malfunction
- Short circuit to power supply or body ground in the wiring harness between fuse block and seat weight sensor control module
- Open circuit in the wiring harness between fuse block and seat weight sensor control module
- Seat weight sensor control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
