Power Window System (Auto-Open/Close Function For Driver-Side Window)

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

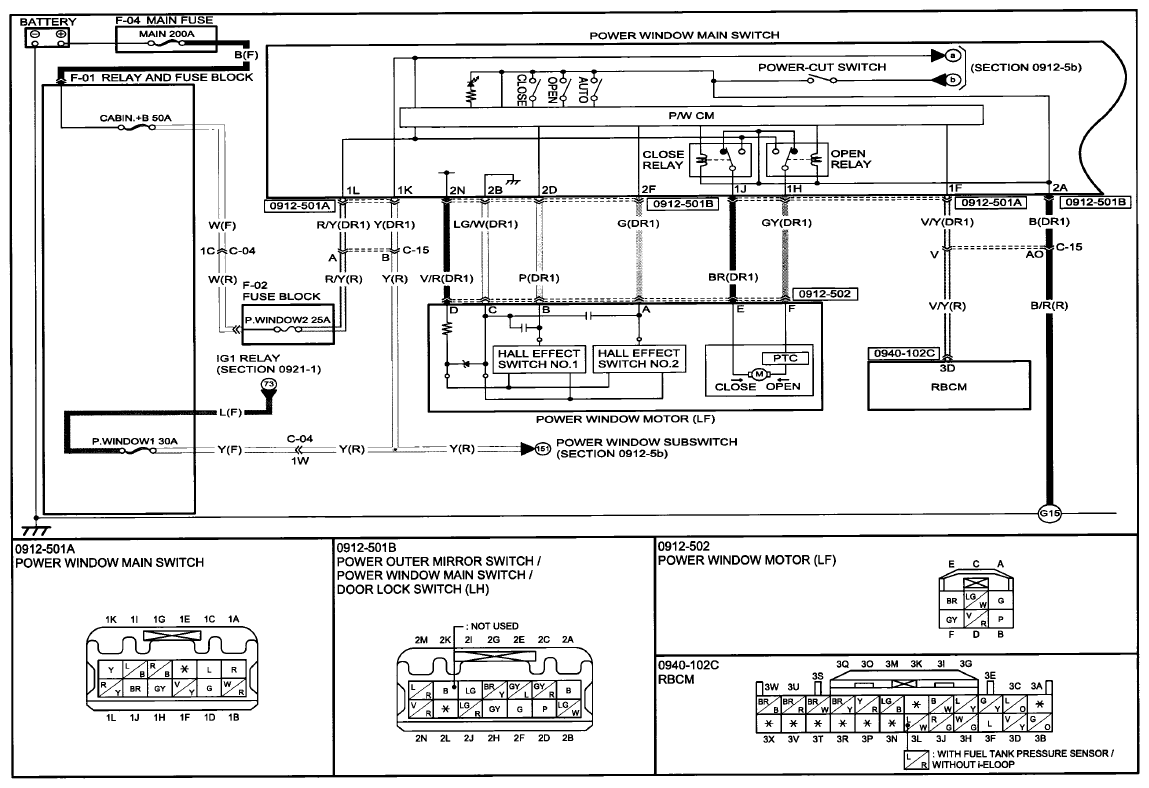

Fig 1: Power Window System Communication Diagram (0912-5A)

Courtesy of MAZDA MOTORS CORP.

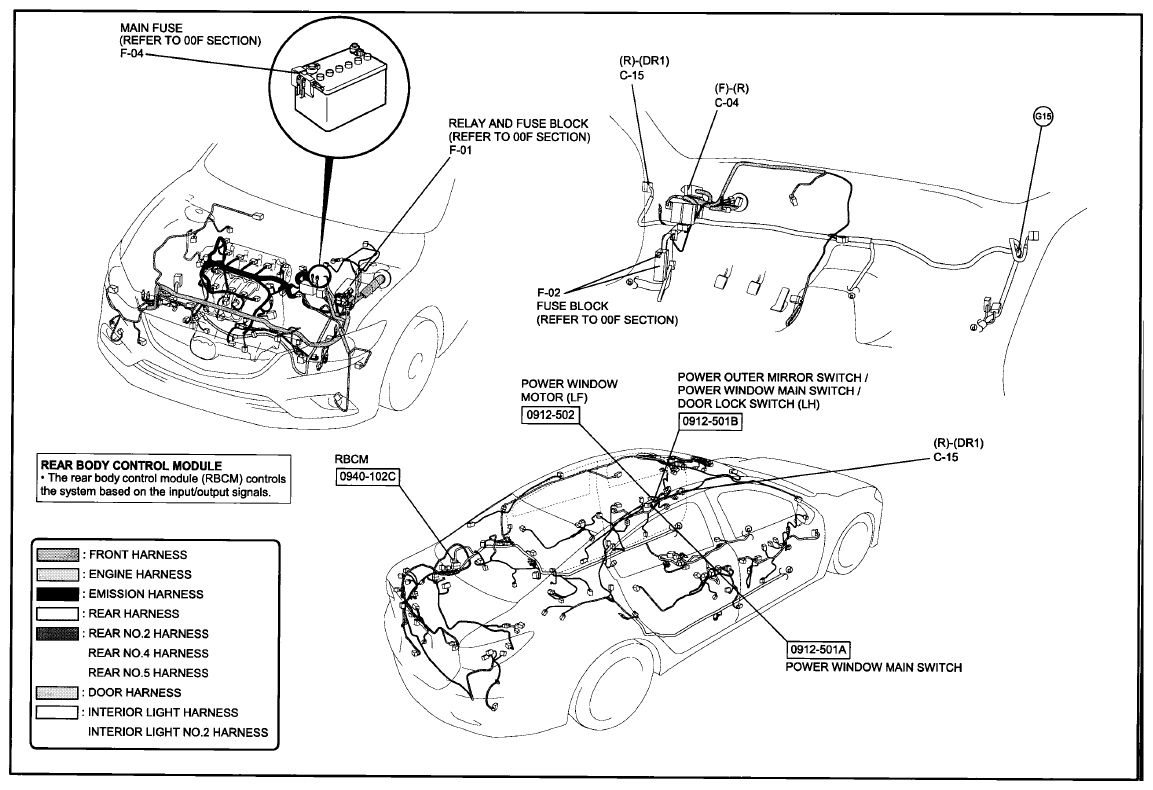

Fig 2: Power Window System Wiring Harness Connectors (0912-5A)

Courtesy of MAZDA MOTORS CORP.

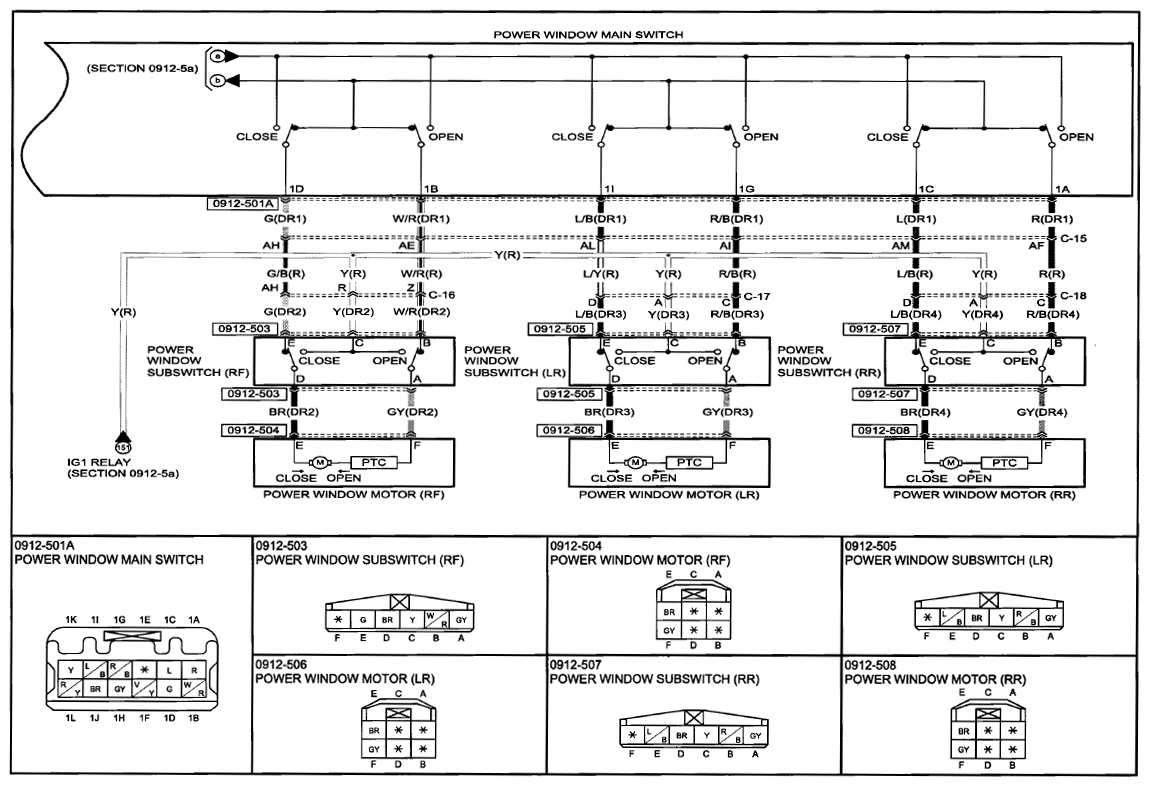

Fig 3: Power Window System Communication Diagram (0912-5B)

Courtesy of MAZDA MOTORS CORP.

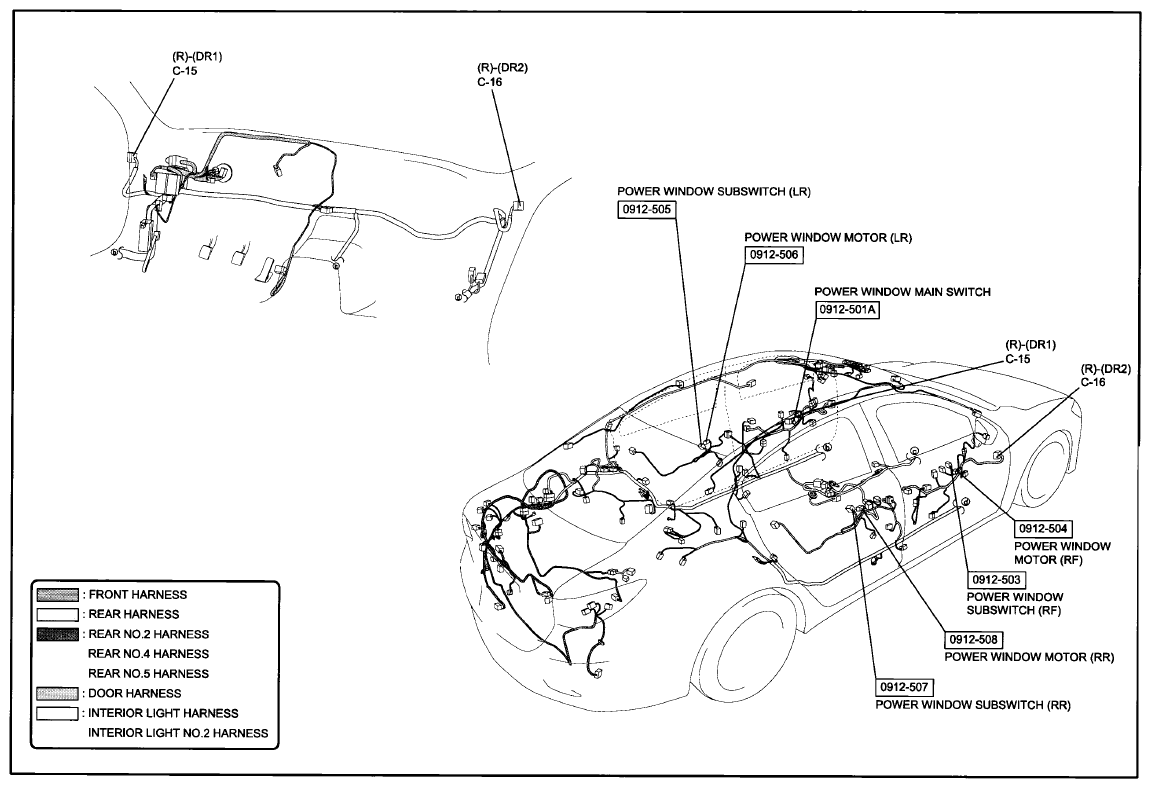

Fig 4: Power Window System Wiring Harness Connectors (0912-5B)

Courtesy of MAZDA MOTORS CORP.
