Exhaust System Removal/Installation: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove in the order indicated in the table.
- Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .)
- Install in the reverse order of removal.
Step 1

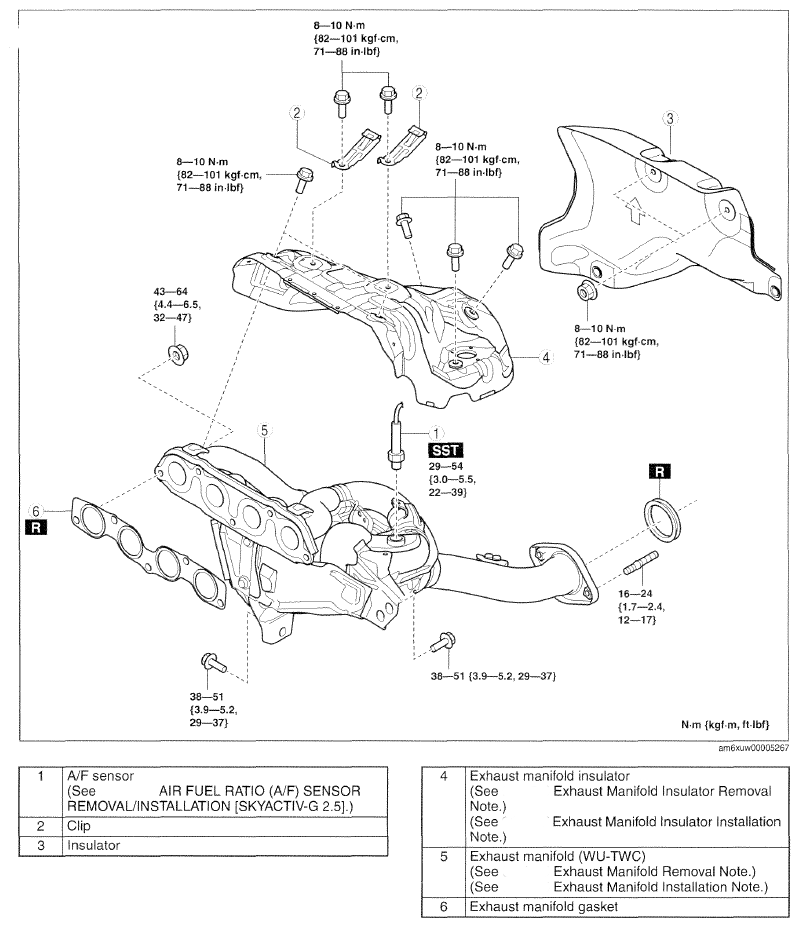

Fig 1: Emission System Removal/Installation Replacement Components With Torque Specifications (1 Of 2)

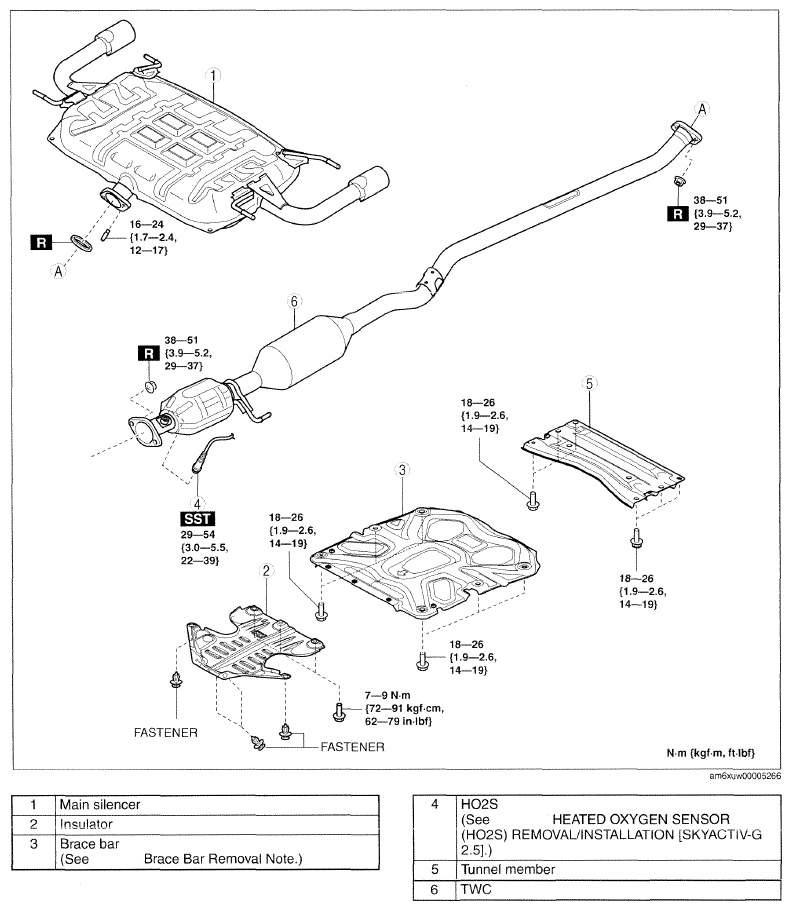

Step 2
