AudioPilot®2 MICROPHONE REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

AudioPilot®2 is a registered trademark of Bose® Corporation.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Disconnect the connector.
Remove the nut.
Remove the AudioPilot®2 microphone.
Install in the reverse order of removal.

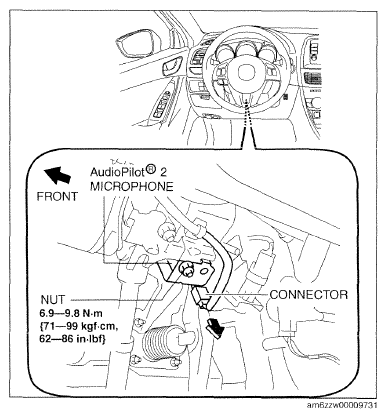

Fig 1: Removing Audio Pilot 2 Microphone With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
