Steering Gear And Linkage Disassembly: Notes

CAUTION:
  • To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.
  1. Disassemble in the order indicated in the figure.

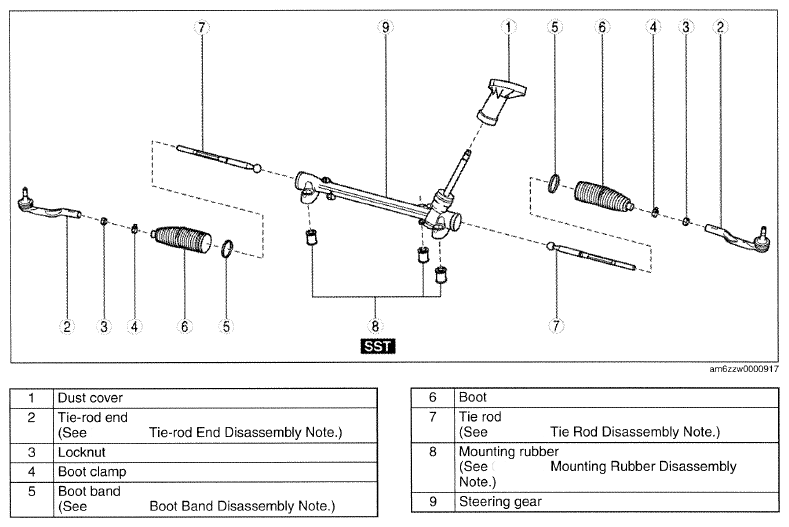

    Fig 1: Disassembled View Of Steering Gear And Linkage
    G09783336Courtesy of MAZDA MOTORS CORP.
