Audio Unit And CD Player Connector End View

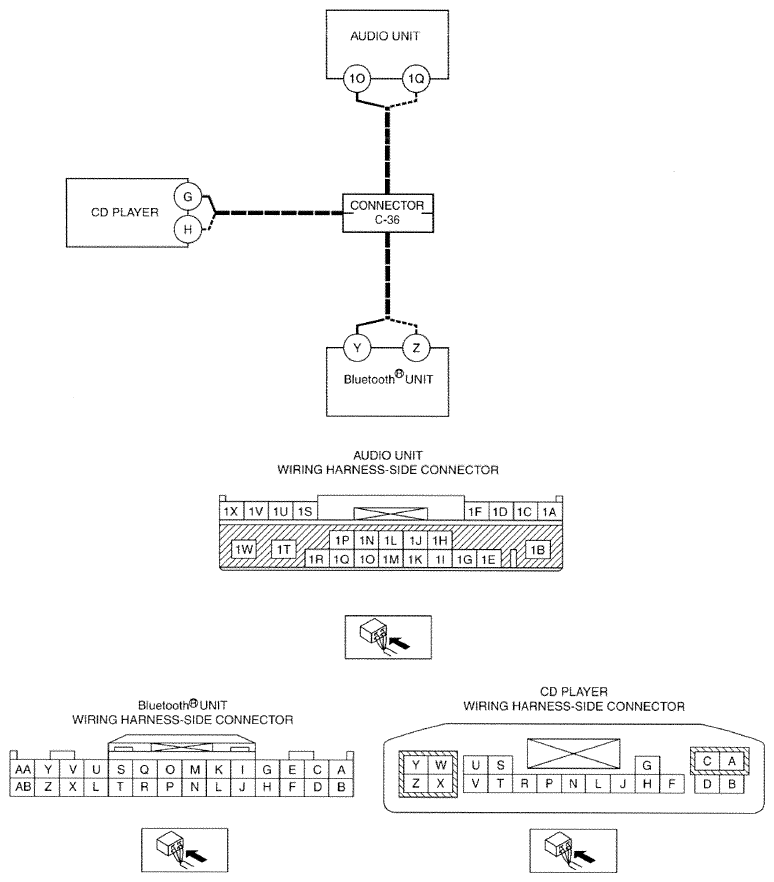

Fig 1: Audio Unit And CD Player Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
