Brake Switch And Start Stop Unit Connector End View

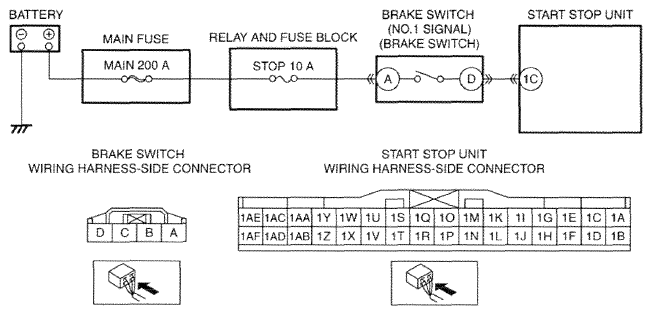

Fig 1: Brake Switch And Start Stop Unit Connector End View
G09771865Courtesy of MAZDA MOTORS CORP.
