DTC B0010 11/B0010 12/B0010 13/B0010 19/B0010 1A: Passenger-Side Air Bag Module: Notes

DTC B0010 11/B0010 12/B0010 13/B0010 19/B0010 1A - DETECTION CONDITIONS AND POSSIBLE CAUSES (STANDARD DEPLOYMENT CONTROL SYSTEM)

System malfunction location	B0010:11: Passenger-side air bag module circuit short to body ground B0010:12: Passenger-side air bag module circuit short to power supply B0010:13: Passenger-side air bag module circuit open circuit or resistance high B0010:19: Short circuit to passenger-side air bag module and other air bag module circuits B0010:1A: Passenger-side air bag module circuit resistance low

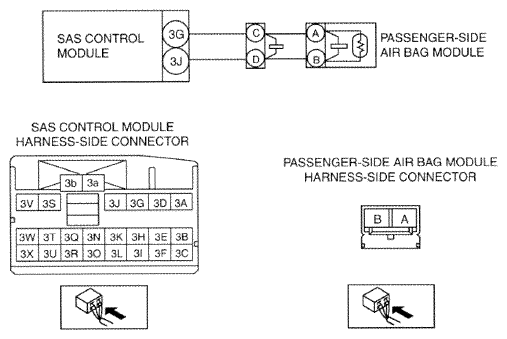

Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Resistance other than 0.81-6.42 ohms detected in passenger-side air bag module circuit Wiring harness between passenger-side air bag module and SAS control module has malfunction
Fail-safe function	Not applicable
Possible cause	Passenger-side air bag module connector malfunction Short circuit to power supply or body ground in the wiring harness between the passenger-side air bag module and SAS control module Open circuit in the wiring harness between the passenger-side air bag module and SAS control module Passenger-side air bag module malfunction SAS control module malfunction
Courtesy of MAZDA MOTORS CORP.
