Ball Bearing (Transaxle Case Side) Assembly Note

  1. Set the primary shaft component, new ball bearing, SST,  and an appropriate steel plate in a press as shown in the figure.
  2. Assemble the ball bearing using the press.

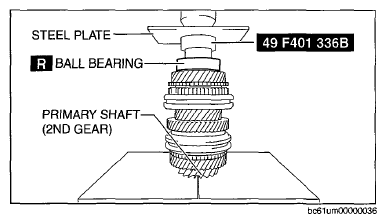

    Fig 1: Assembling Ball Bearing Using Press
    G08347865
