Clutch Hub (3GR/4GR) Assembly Note

  1. Set the primary shaft component and SST in a press as shown in the figure.
  2. Align the projection of the synchronizer ring with the positioning groove of the clutch hub key.
  3. Assemble the clutch hub using the press.

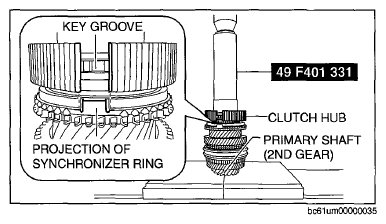

    Fig 1: Aligning Projection Of Synchronizer Ring With Positioning Groove Of Clutch Hub Key
    G08347864
