Quick Diagnosis Table

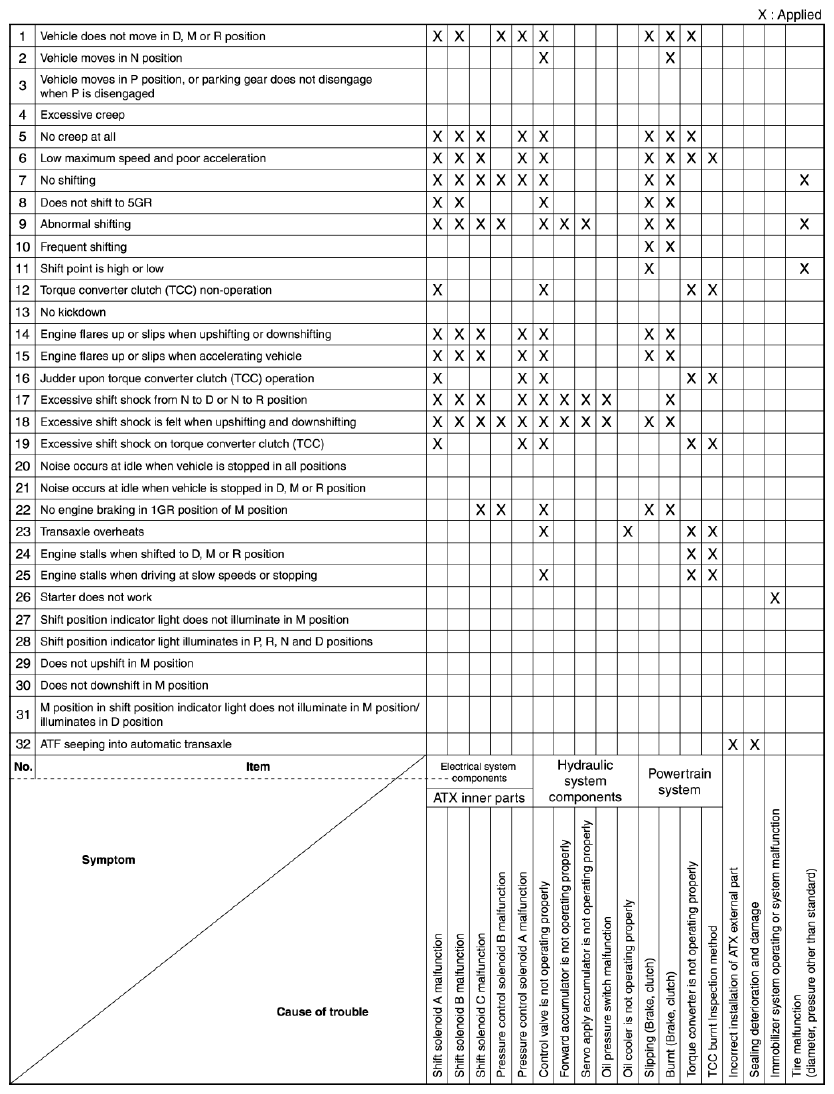

Fig 1: FS5A-EL - Quick Diagnosis Table (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

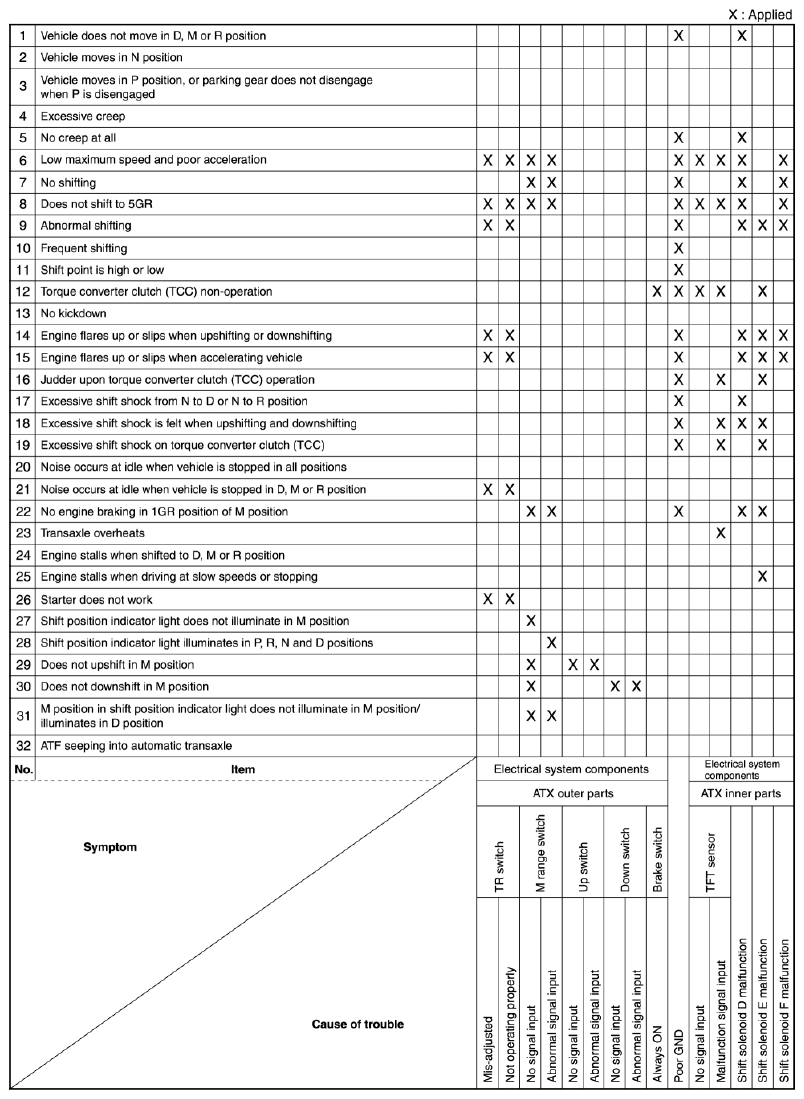

Fig 2: FS5A-EL - Quick Diagnosis Table (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

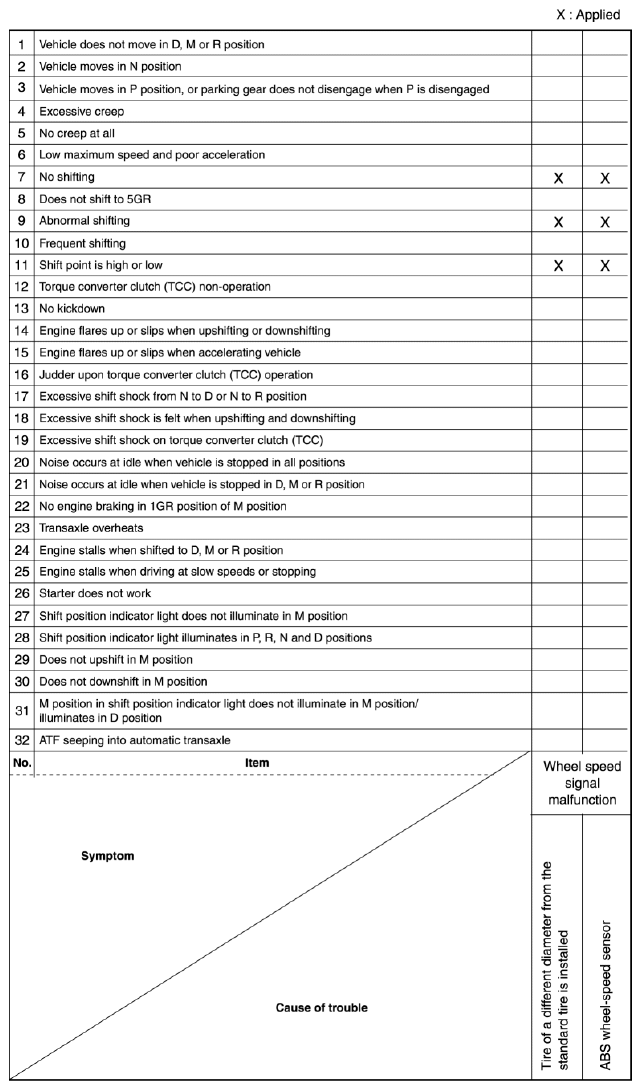

Fig 3: FS5A-EL - Quick Diagnosis Table (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

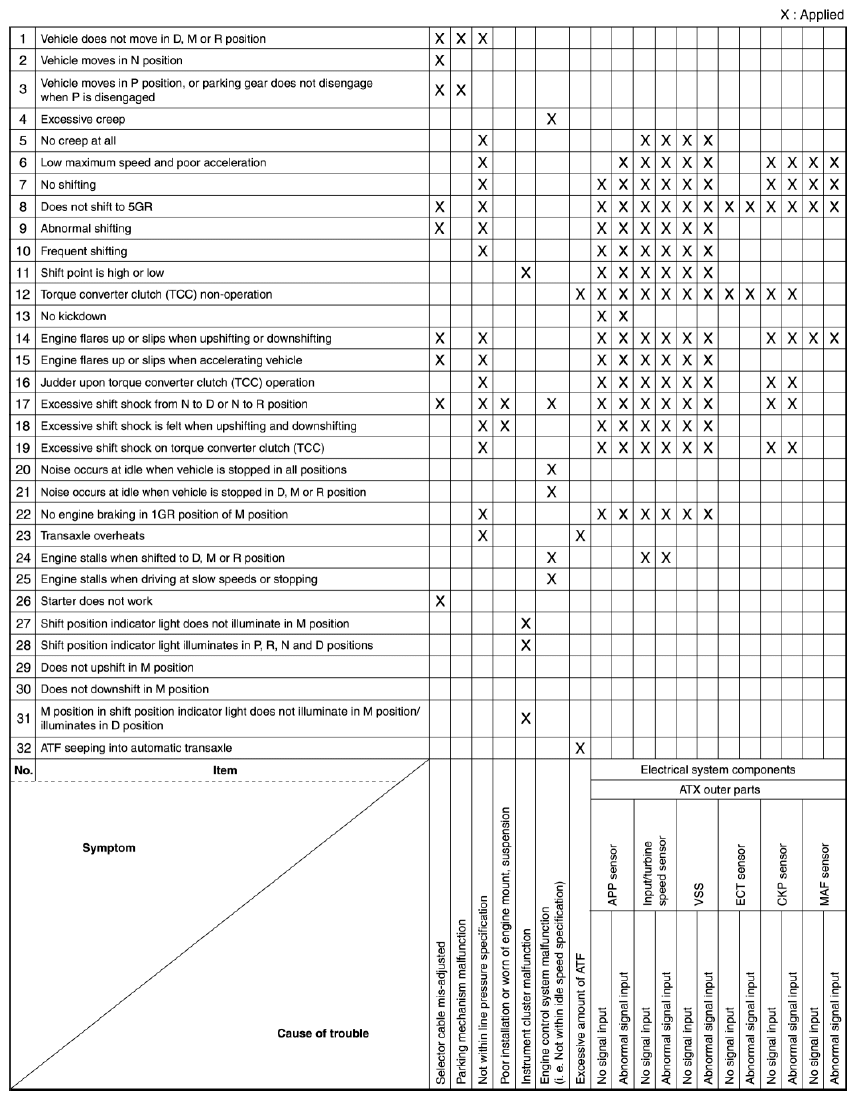

Fig 4: FS5A-EL - Quick Diagnosis Table (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
