Auto-open/close function for driver-side

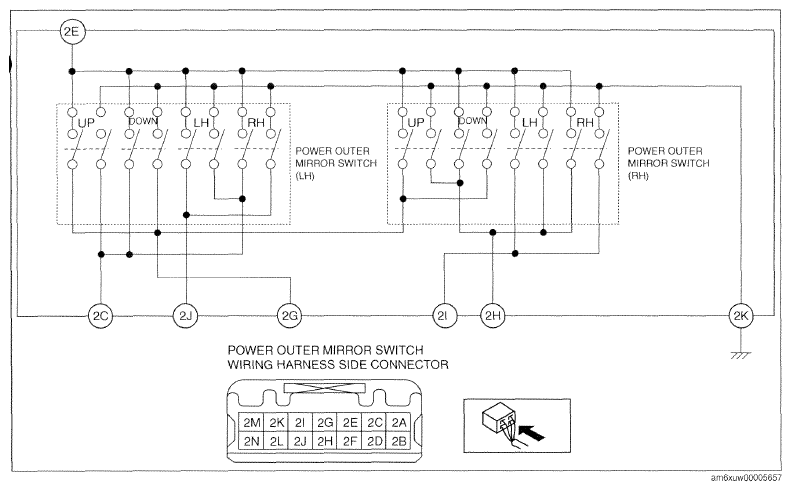

Fig 1: Power Outer Mirror Switch - Circuit Diagram (Auto-Open/Close Function For Driver-Side)

Courtesy of MAZDA MOTORS CORP.

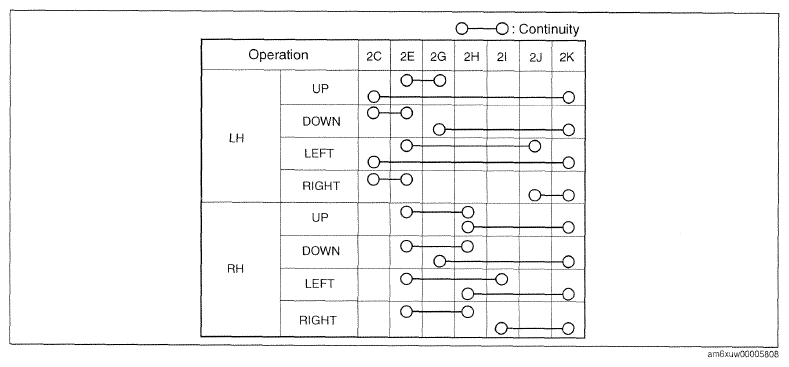

Fig 1: Power Outer Mirror Switch Continuity Reference Chart (Auto-Open/Close Function For Driver Side)

Courtesy of MAZDA MOTORS CORP.

If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)
