Rear Buckle Removal/Installation: Notes

  1. Remove the following parts (rear buckle (RH)):
    1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Remove the following parts (rear buckle (LH)):
    1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .)
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    6. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolts.

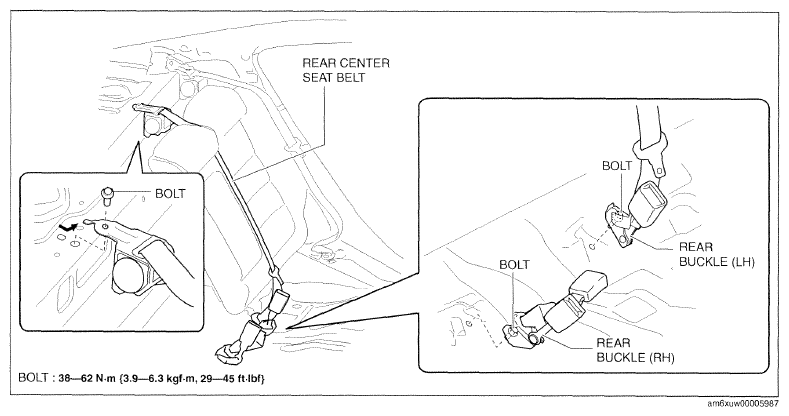

    Fig 1: Removing Rear Buckle With torque Specifications
    G09787238Courtesy of MAZDA MOTORS CORP.
  4. Remove the rear buckle (RH) and rear buckle (LH) with the rear center seat belt.
  5. Install in the reverse order of removal. (See REAR BUCKLE INSTALLATION NOTE .)
