DSC HU/CM Connector Removal Note

  1. Pull the lock lever down in the direction of the arrow while pressing the tab of the connector cover.
  2. Pull the connector toward the vehicle rear and remove it.

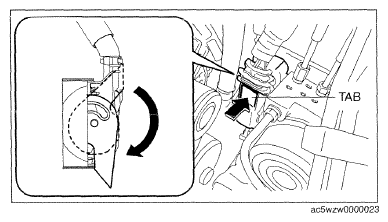

    Fig 1: Removing DSC HU/CM Connector
    G09759294Courtesy of MAZDA MOTORS CORP.
