Troubleshooting Procedure

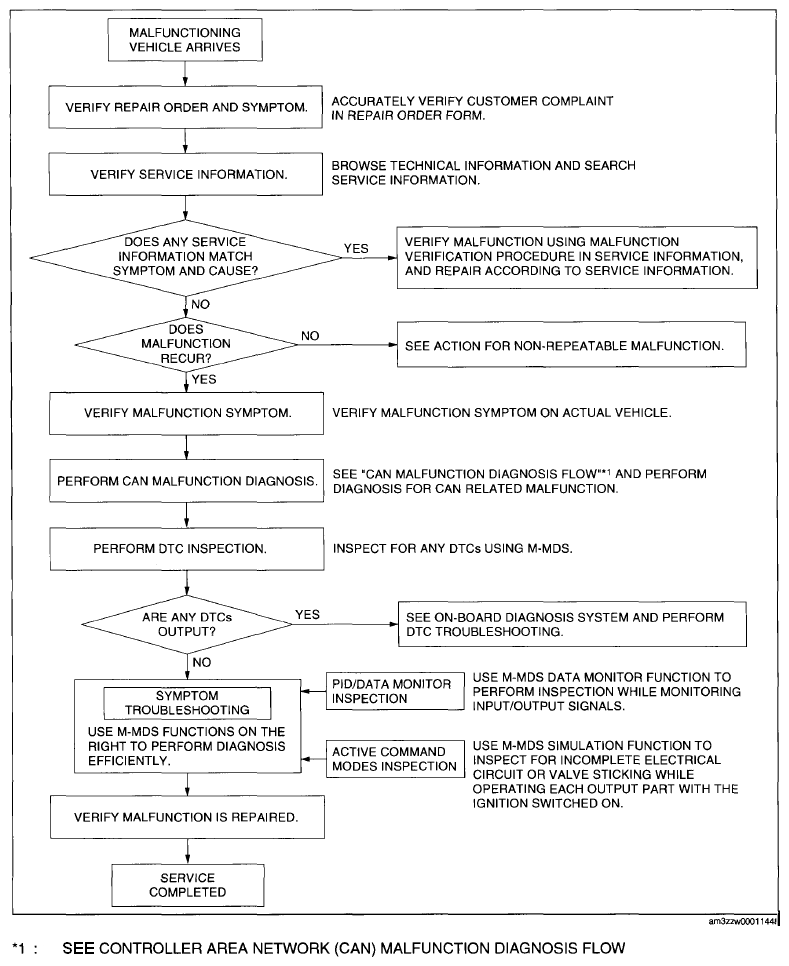

Fig 1: Troubleshooting Procedure Flow Chart
G09075173Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
