Automatic Transaxle Location Index

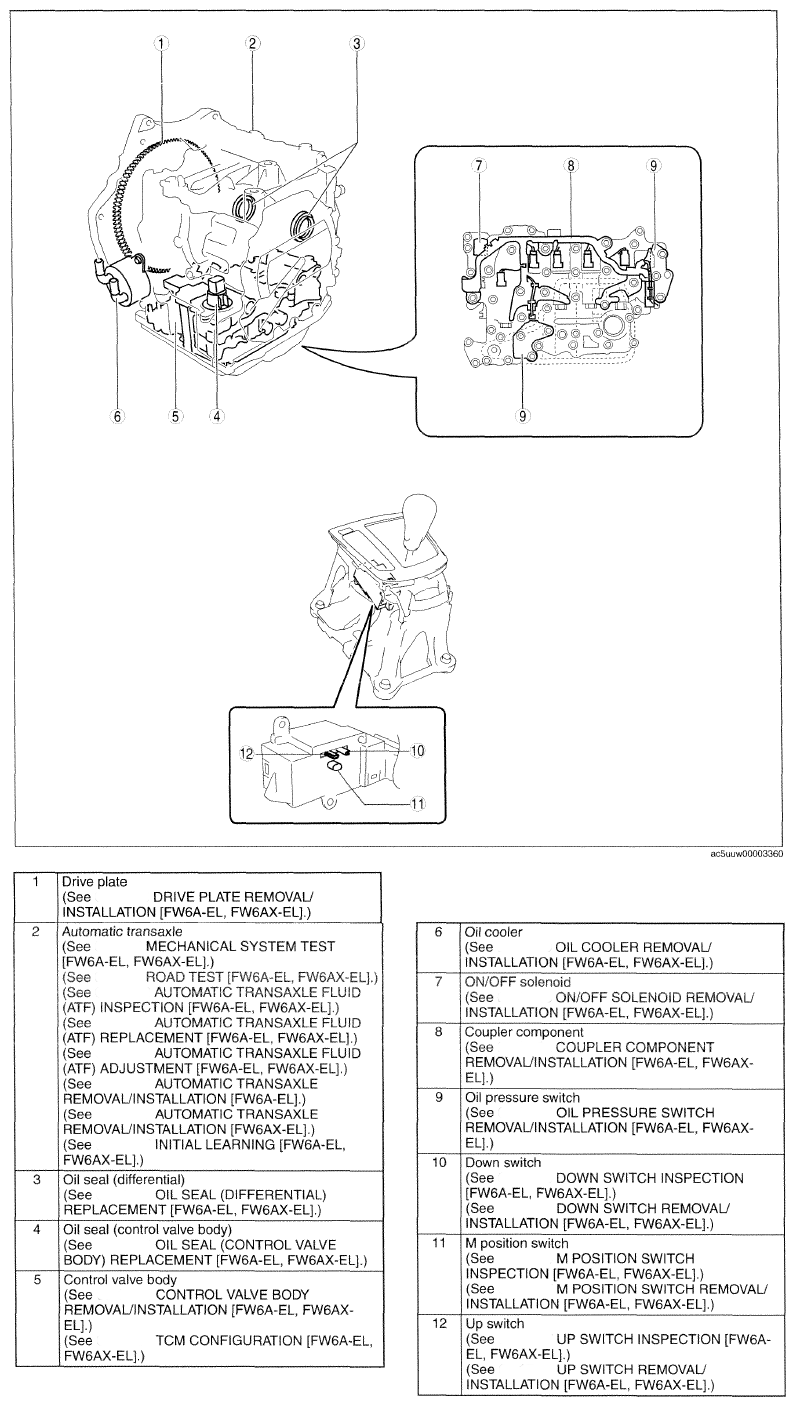

Fig 1: Automatic Transaxle Components Location
Courtesy of MAZDA MOTORS CORP.
