DSC System Wiring Diagram

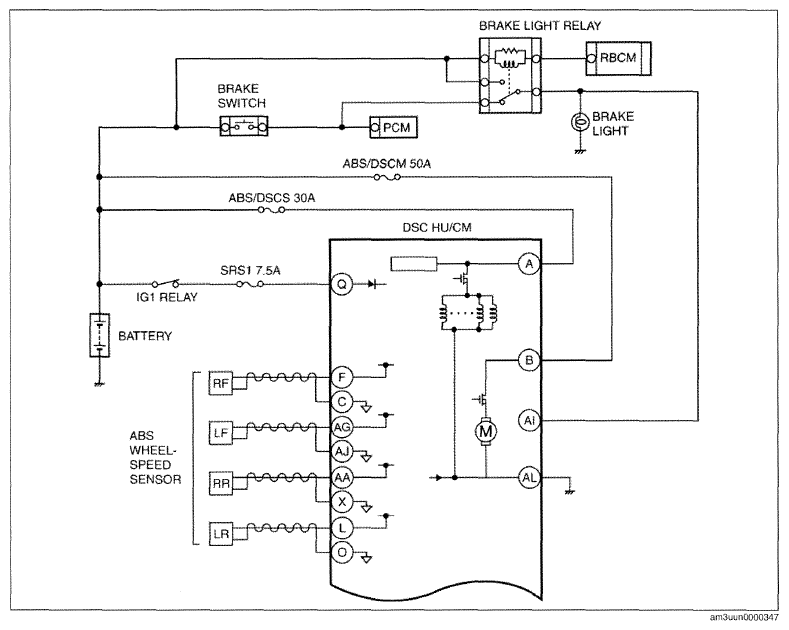

Fig 1: DSC System - Wiring Diagram (1 Of 2)
G09783064Courtesy of MAZDA MOTORS CORP.

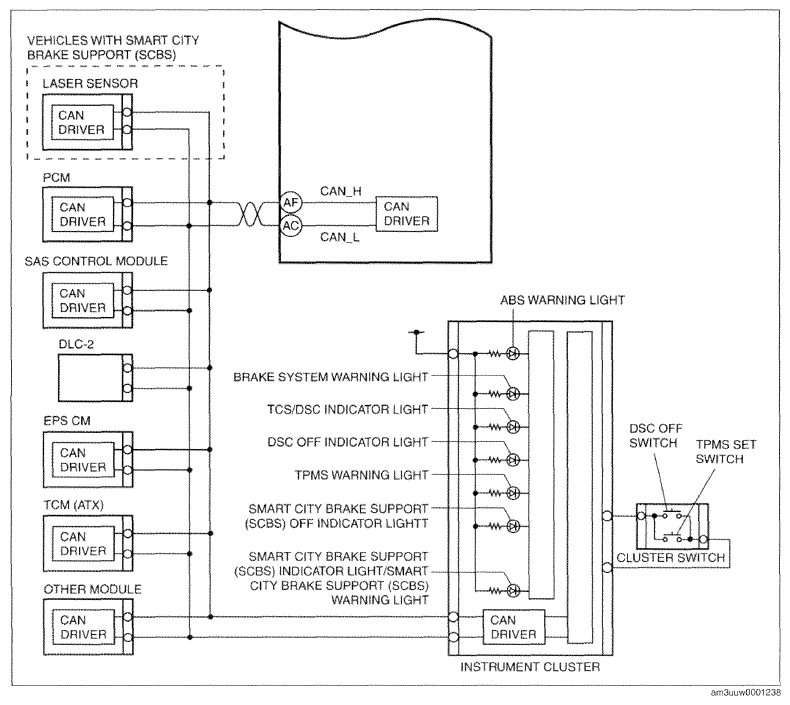

Fig 2: DSC System - Wiring Diagram (2 Of 2)
G09783065Courtesy of MAZDA MOTORS CORP.
