Seat Warmer Switch Installation Note

  1. Place the seat warmer switch's tab to the notch of center console box.

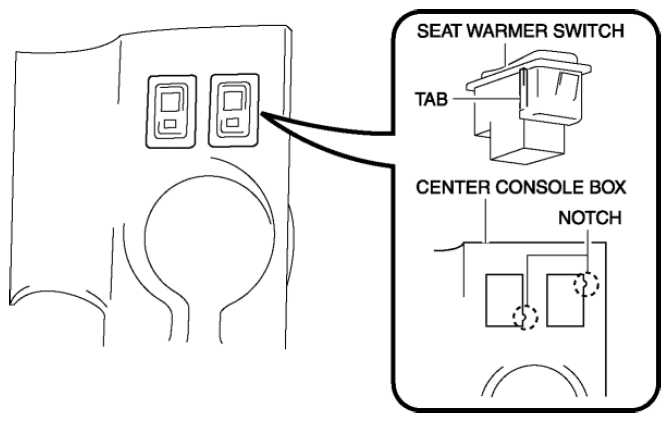

    Fig 1: Seat Warmer Switch And Notch Of Center Console Box
    G08153003Courtesy of MAZDA MOTORS CORP.
