DTC P0712-00: TFT Sensor Circuit Low Input: Notes

DTC P0712:00	TFT sensor circuit low input
DETECTION CONDITION	TFT sensor voltage is 0.12 V or less for 150 s Diagnostic support note The check engine light illuminates if the TCM detects the above malfunction condition during the first drive cycle. The automatic transaxle warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle. PENDING CODE is available. FREEZE FRAME DATA is available. The DTC is stored in the TCM memory.
FAIL-SAFE FUNCTION	Inhibits TCC control Inhibits feedback control

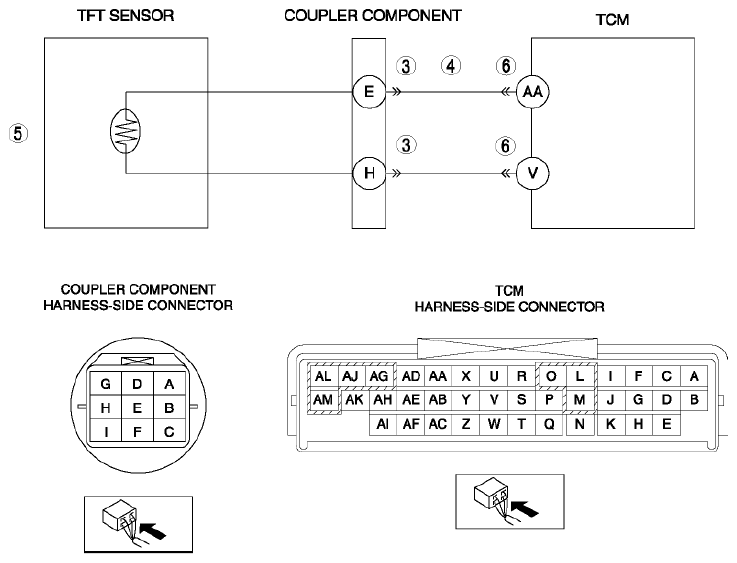

POSSIBLE CAUSE	Coupler component connector or terminal malfunction Short to GND in wiring harness between TFT sensor and TCM terminal AA TFT sensor malfunction TCM connector or terminal malfunction TCM malfunction
Courtesy of MAZDA MOTORS CORP.
