Vehicle Front Side

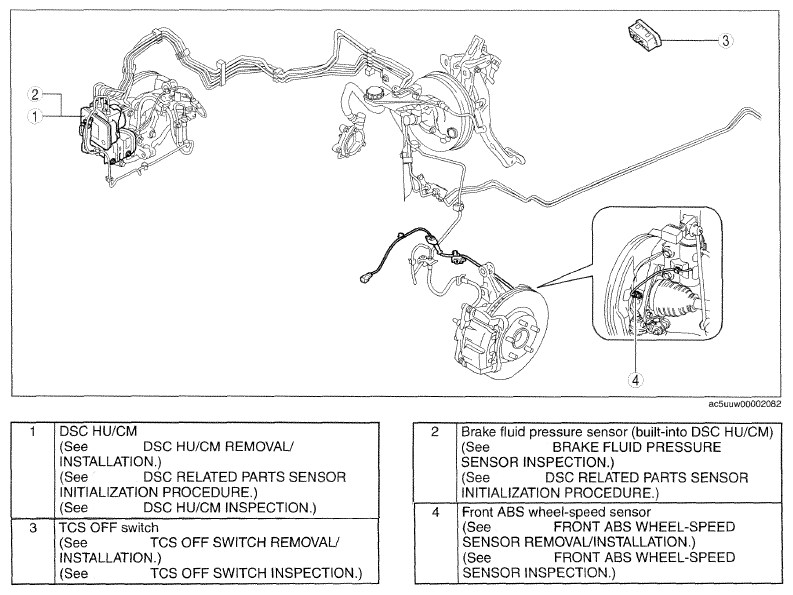

Fig 1: Dynamic Stability Control Components Location (Vehicle Front Side)
G09759286Courtesy of MAZDA MOTORS CORP.
