Activation Procedure

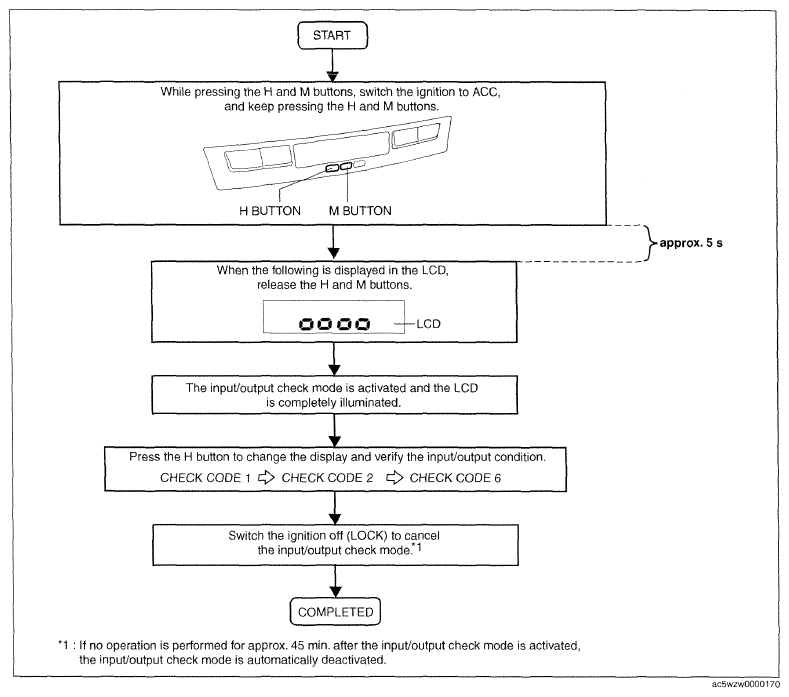

Fig 1: Clock Input/Output Activation Procedure

G09763023

Courtesy of MAZDA MOTORS CORP.
