Light Switch Removal/Installation

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing the light switch, it is necessary to rotate the steering wheel. If the ignition is switched off from ON (engine on) with the driver's door closed, the steering wheel is locked. Therefore, perform the procedure in Steps 1 to 3 so that the steering wheel is not locked.

Switch the ignition ON (engine on).
Open the driver's door.
Switch the ignition to off.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION ).
Rotate the steering wheel until the service hole in the position shown in the figure is visible.

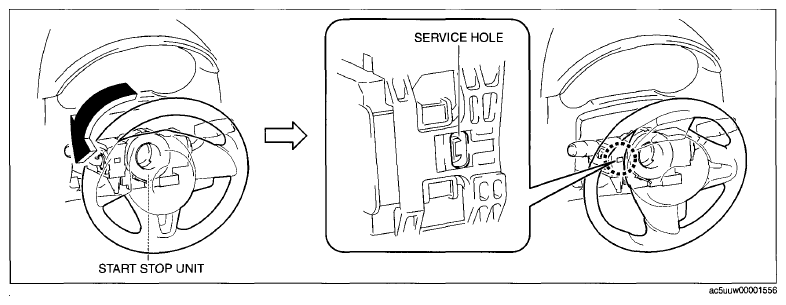

Fig 1: Rotating Steering Wheel
Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Service Hole
While pressing the light switch tab in the direction of the arrow (1) shown in the figure using a flathead screwdriver, pull out the light switch in the direction of the arrow (2) shown in the figure to detach the light switch tab and the start stop unit.

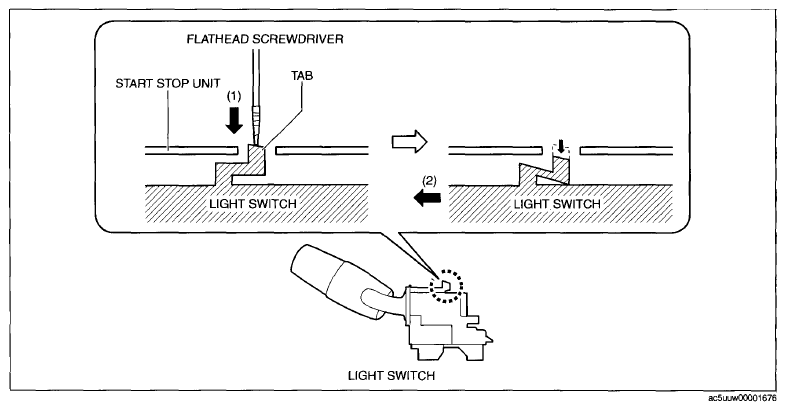

Fig 3: Pressing Light Switch Tab
Remove the light switch.
Install in the reverse order of removal.

Fig 4: Identifying Light Switch And Start Stop Unit
