Engine Control System

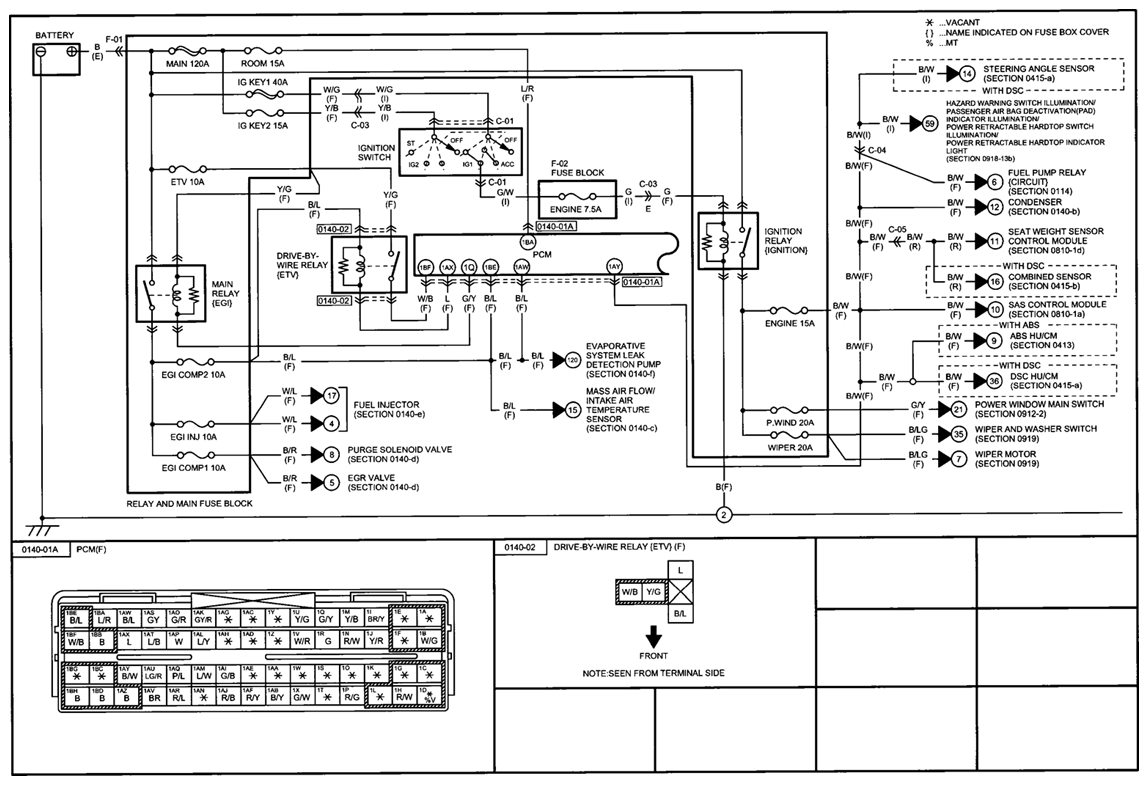

Fig 1: Engine Control System - Circuit Diagram (0140-A)
G09757680Courtesy of MAZDA MOTORS CORP.

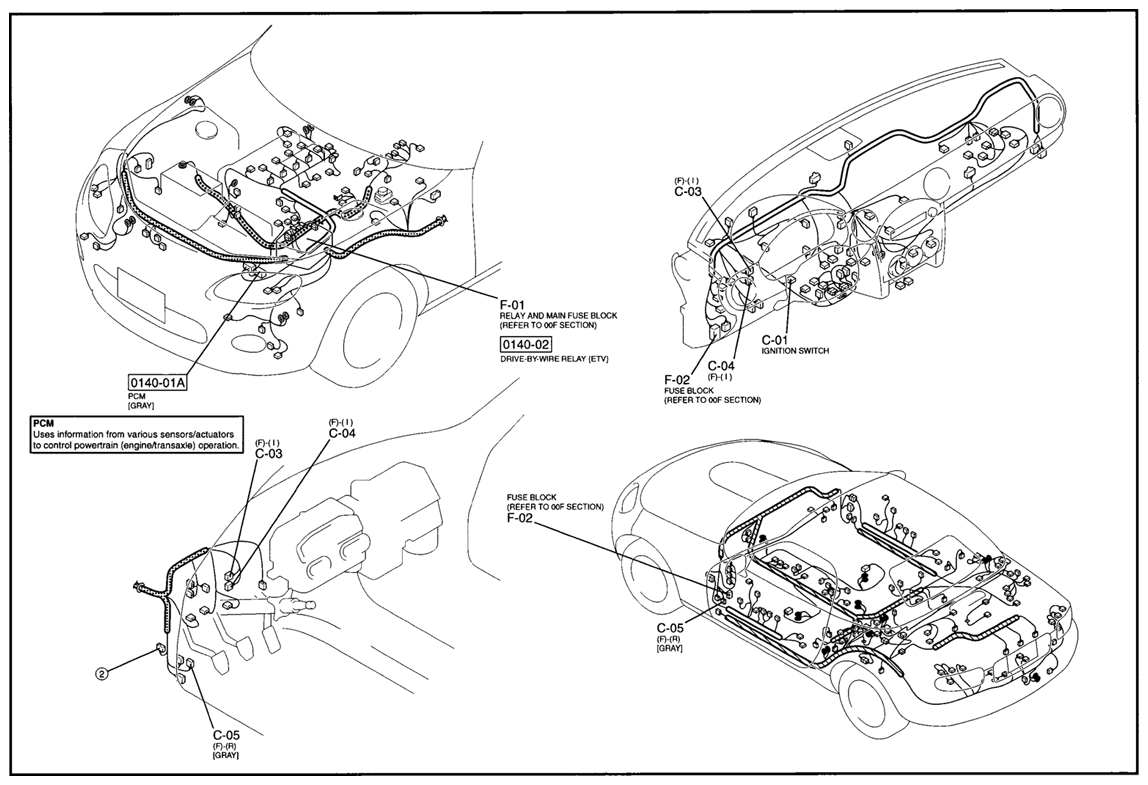

Fig 2: Engine Control System Wiring Harness Layout (0140-A)
G09757681Courtesy of MAZDA MOTORS CORP.

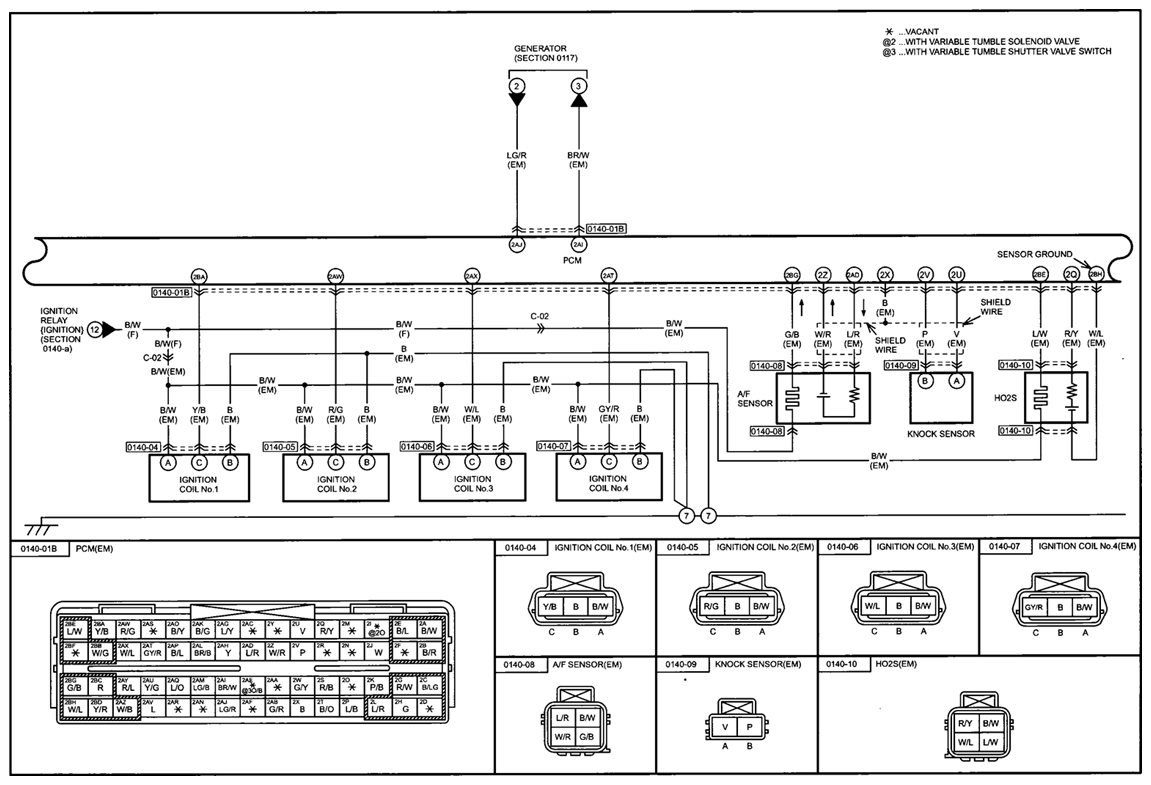

Fig 3: Engine Control System - Circuit Diagram (0140-B)
G09757682Courtesy of MAZDA MOTORS CORP.

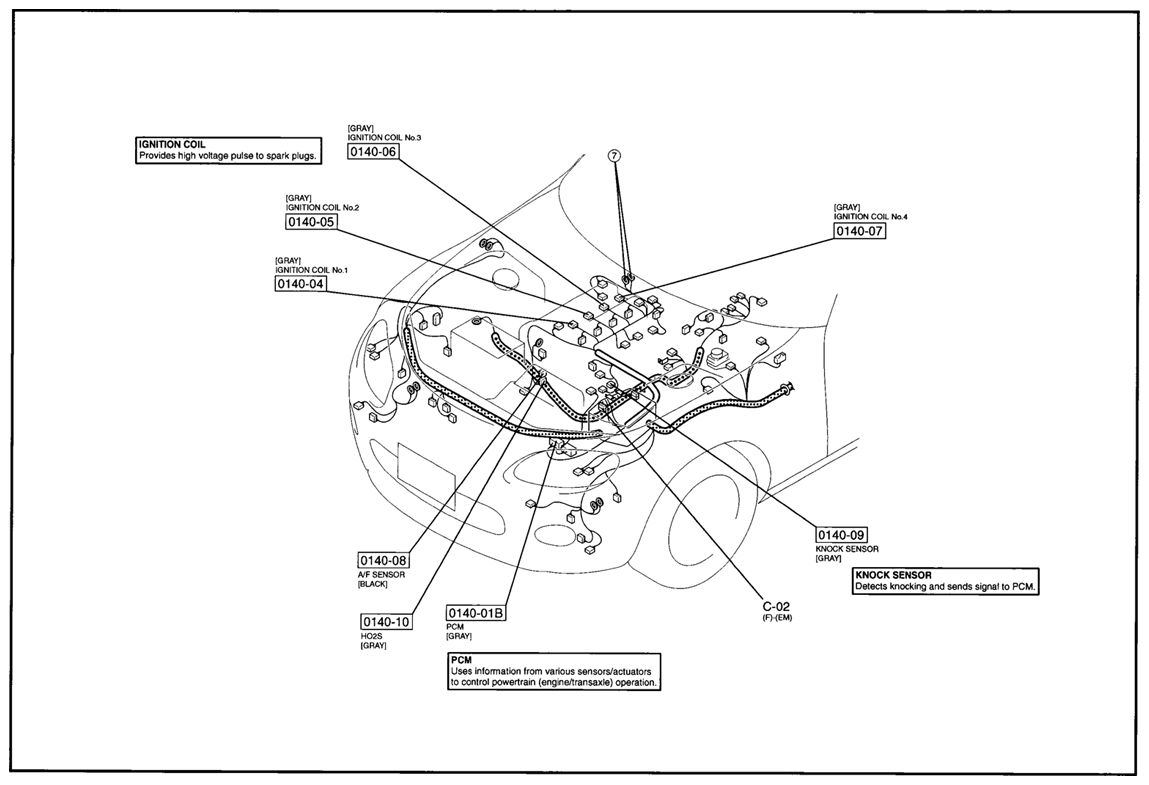

Fig 4: Engine Control System Wiring Harness Layout (0140-B)
G09757683Courtesy of MAZDA MOTORS CORP.

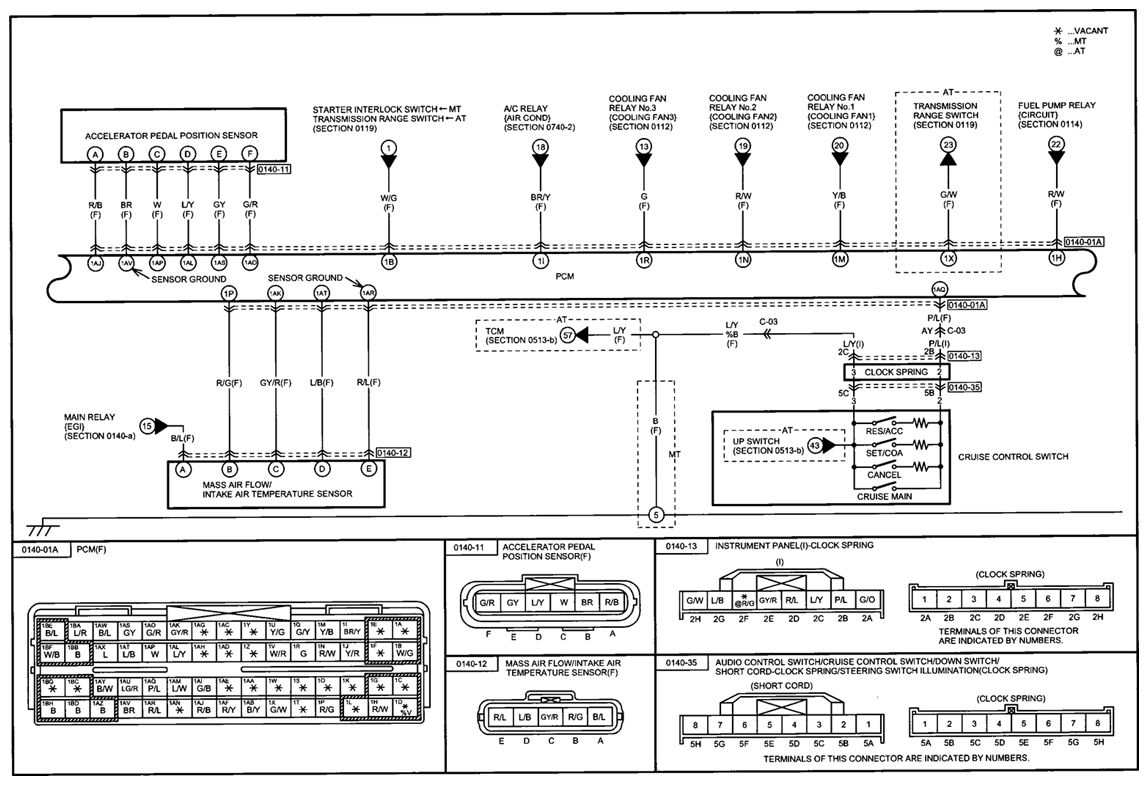

Fig 5: Engine Control System - Circuit Diagram (0140-C)
G09757684Courtesy of MAZDA MOTORS CORP.

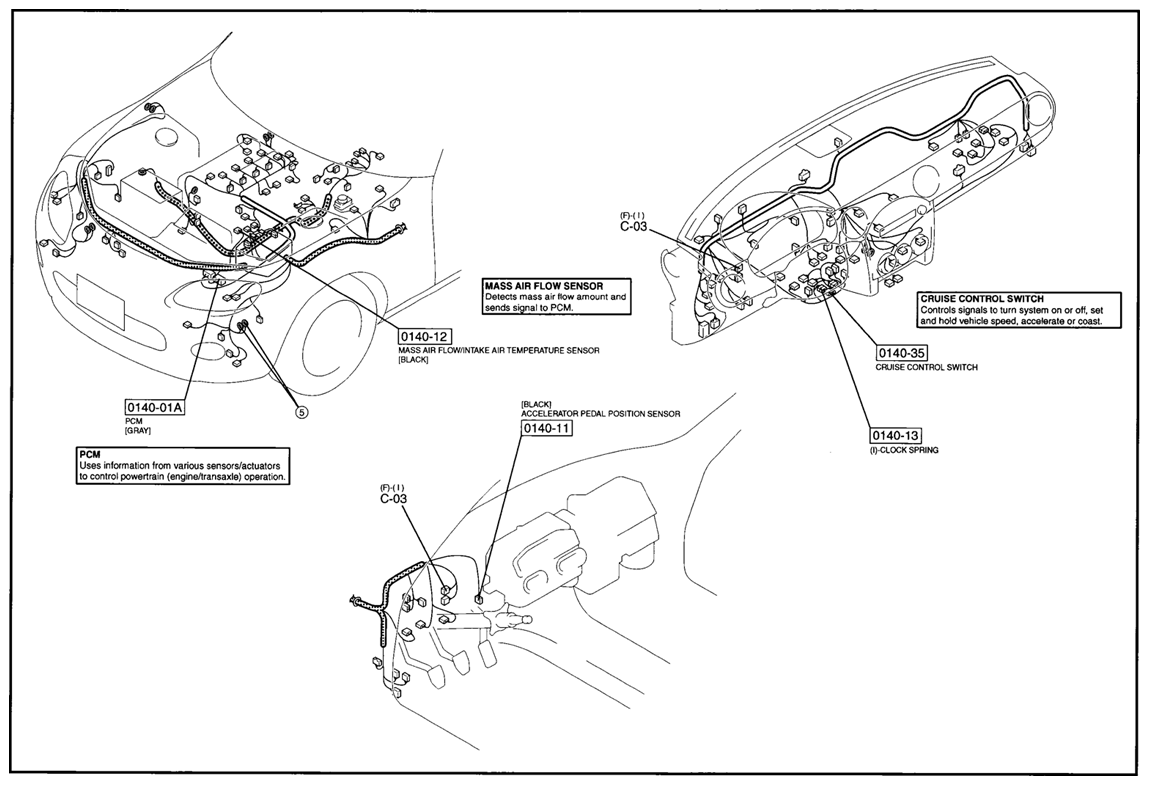

Fig 6: Engine Control System Wiring Harness Layout (0140-C)
G09757685Courtesy of MAZDA MOTORS CORP.

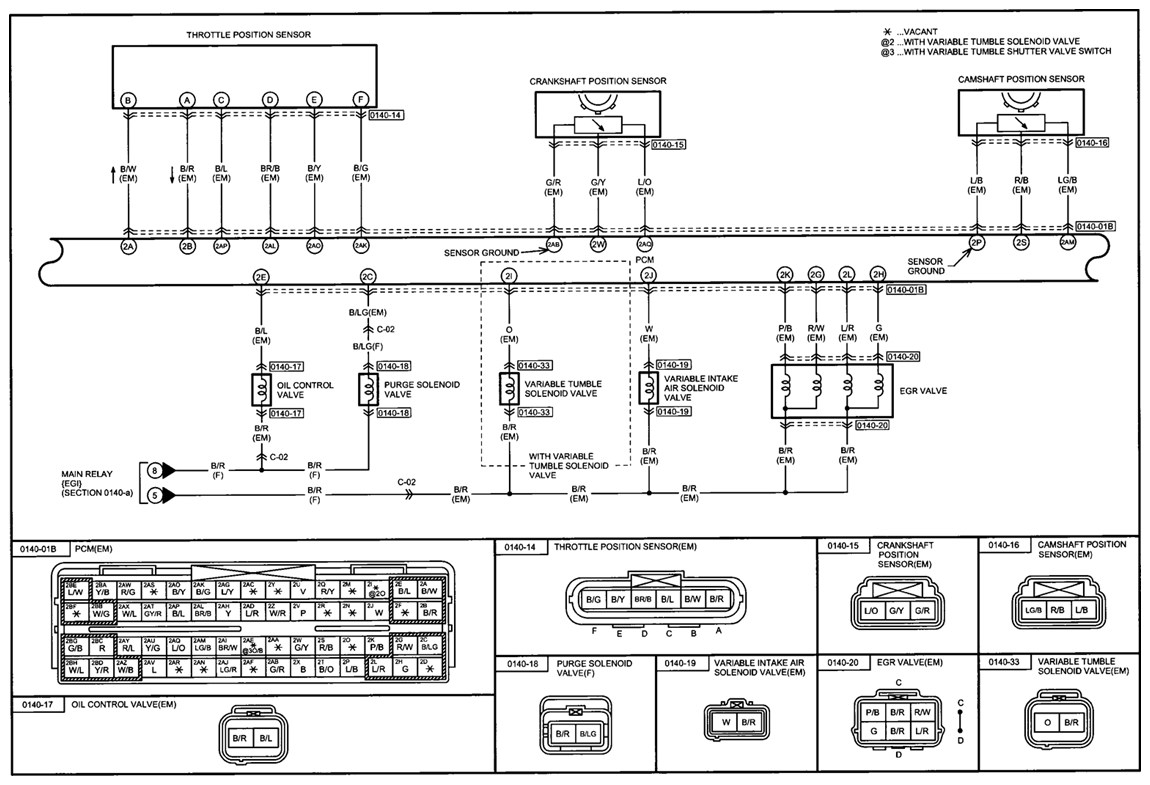

Fig 7: Engine Control System - Circuit Diagram (0140-D)
G09757686Courtesy of MAZDA MOTORS CORP.

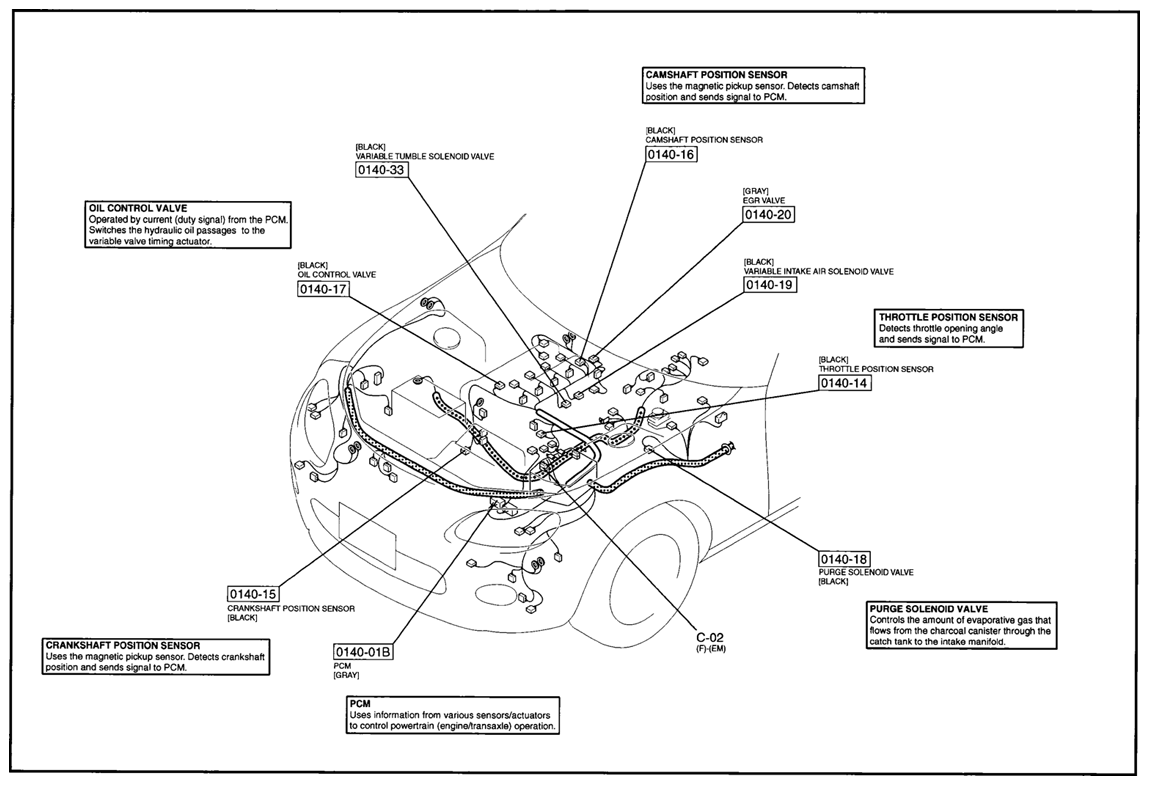

Fig 8: Engine Control System Wiring Harness Layout (0140-D)
G09757687Courtesy of MAZDA MOTORS CORP.

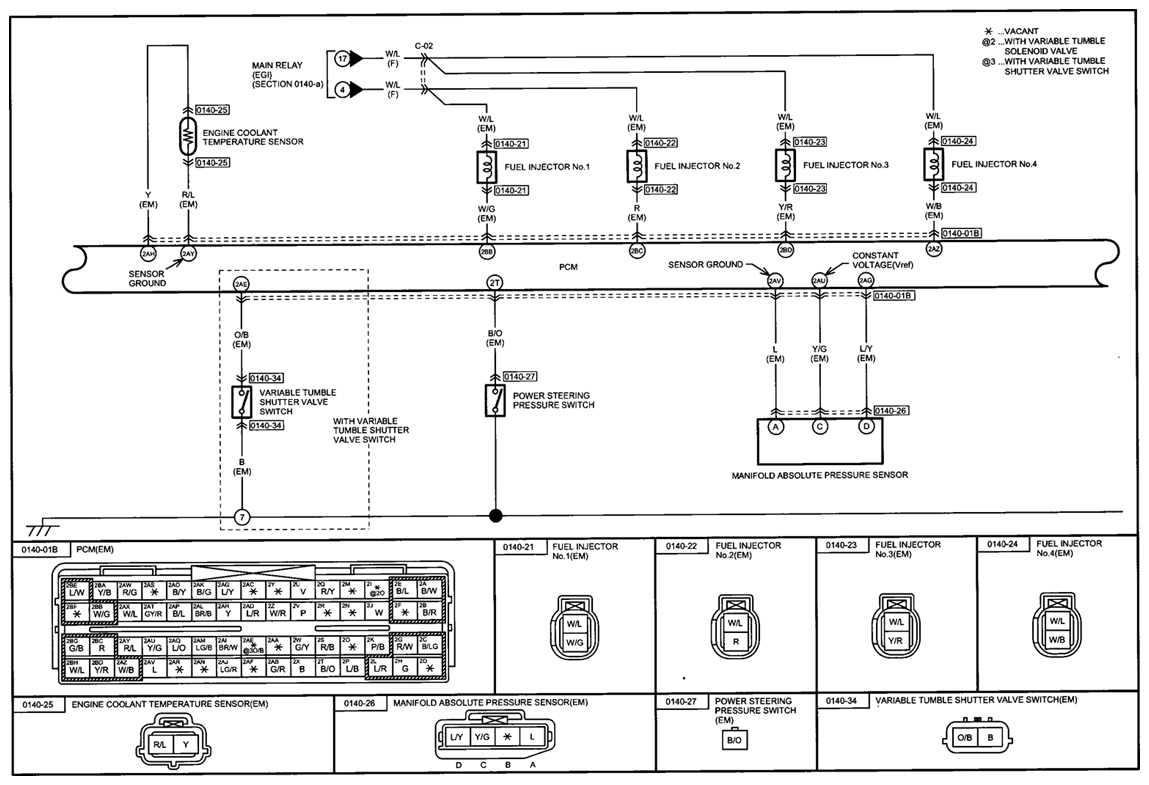

Fig 9: Engine Control System - Circuit Diagram (0140-E)
G09757688Courtesy of MAZDA MOTORS CORP.

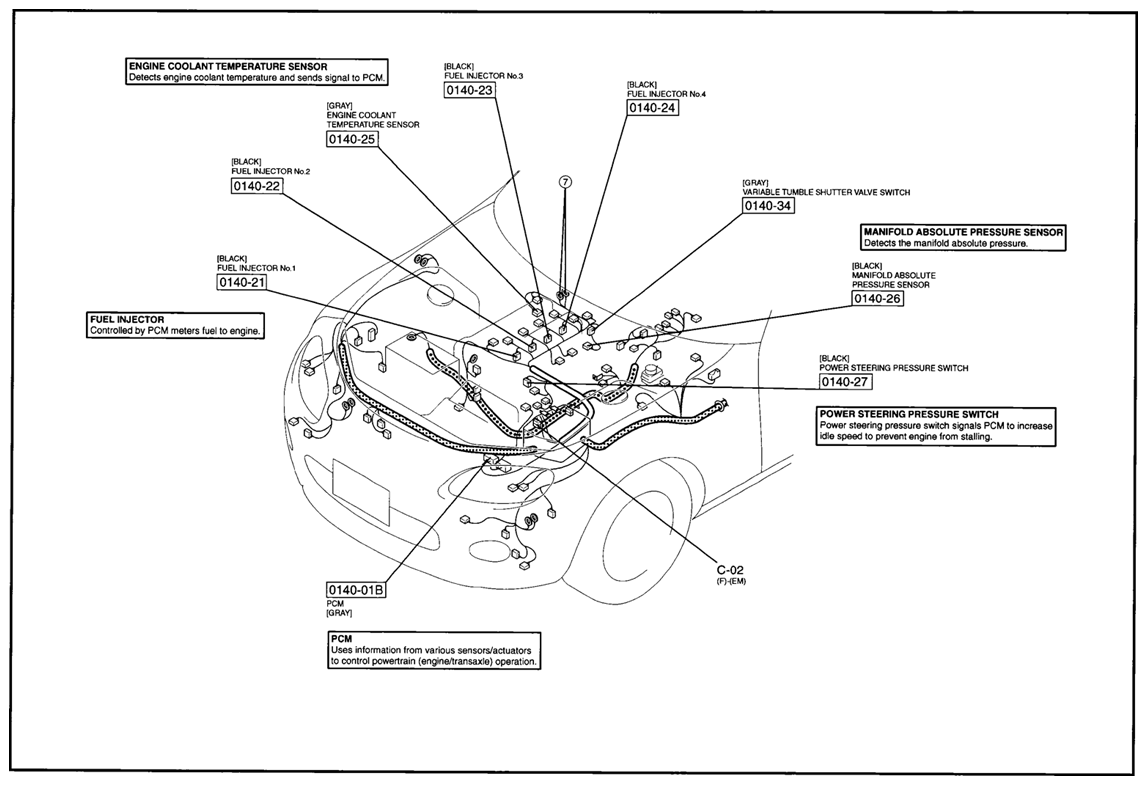

Fig 10: Engine Control System Wiring Harness Layout (0140-E)
G09757689Courtesy of MAZDA MOTORS CORP.

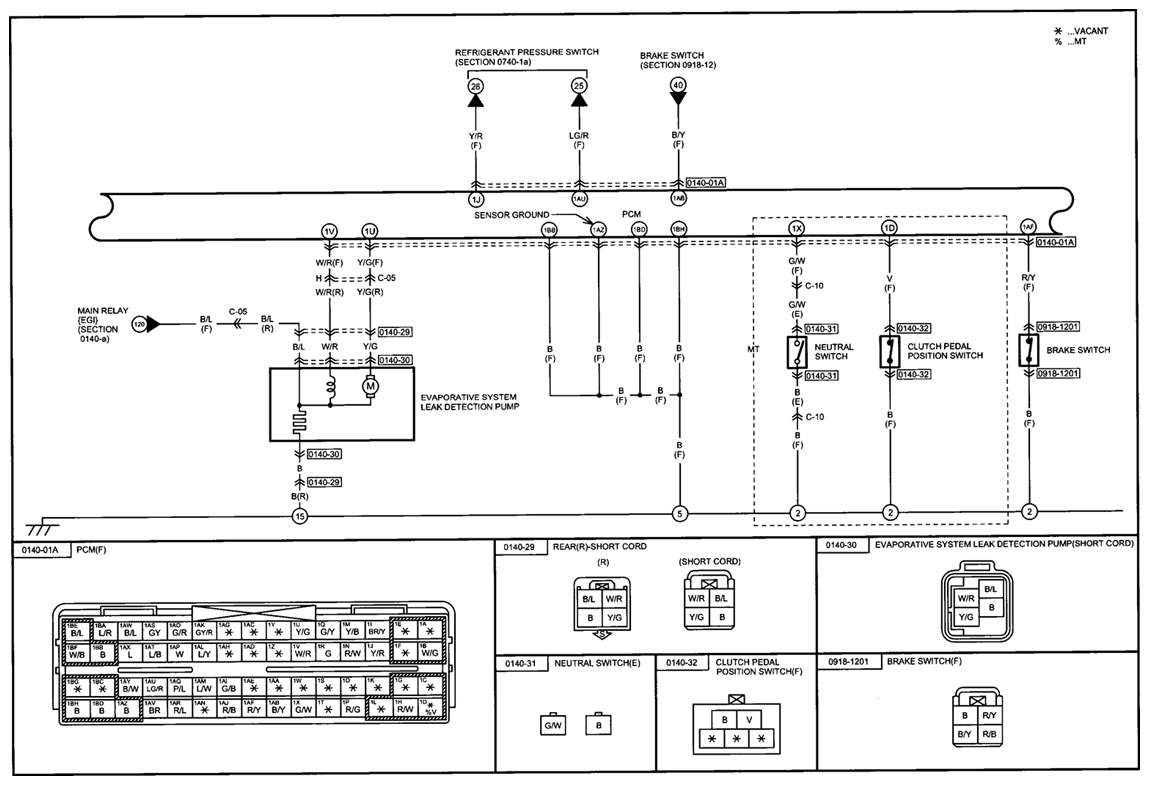

Fig 11: Engine Control System - Circuit Diagram (0140-F)
G09757690Courtesy of MAZDA MOTORS CORP.

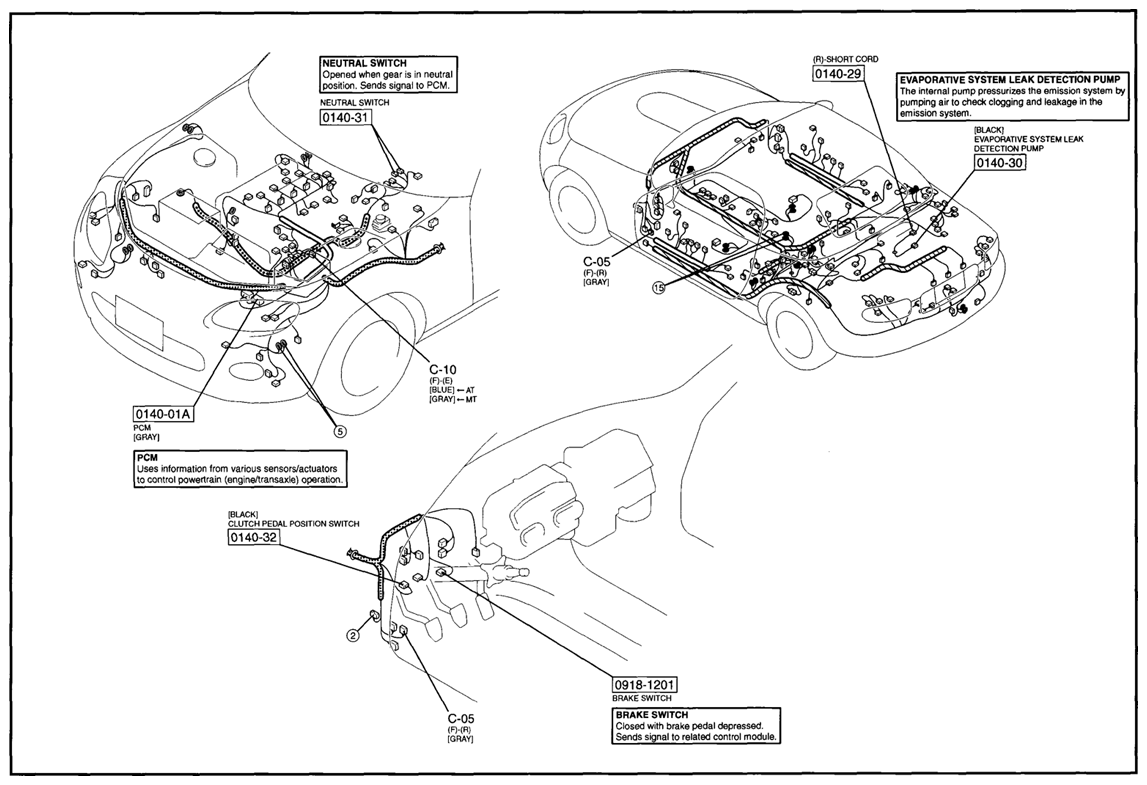

Fig 12: Engine Control System Wiring Harness Layout (0140-F)
G09757691Courtesy of MAZDA MOTORS CORP.

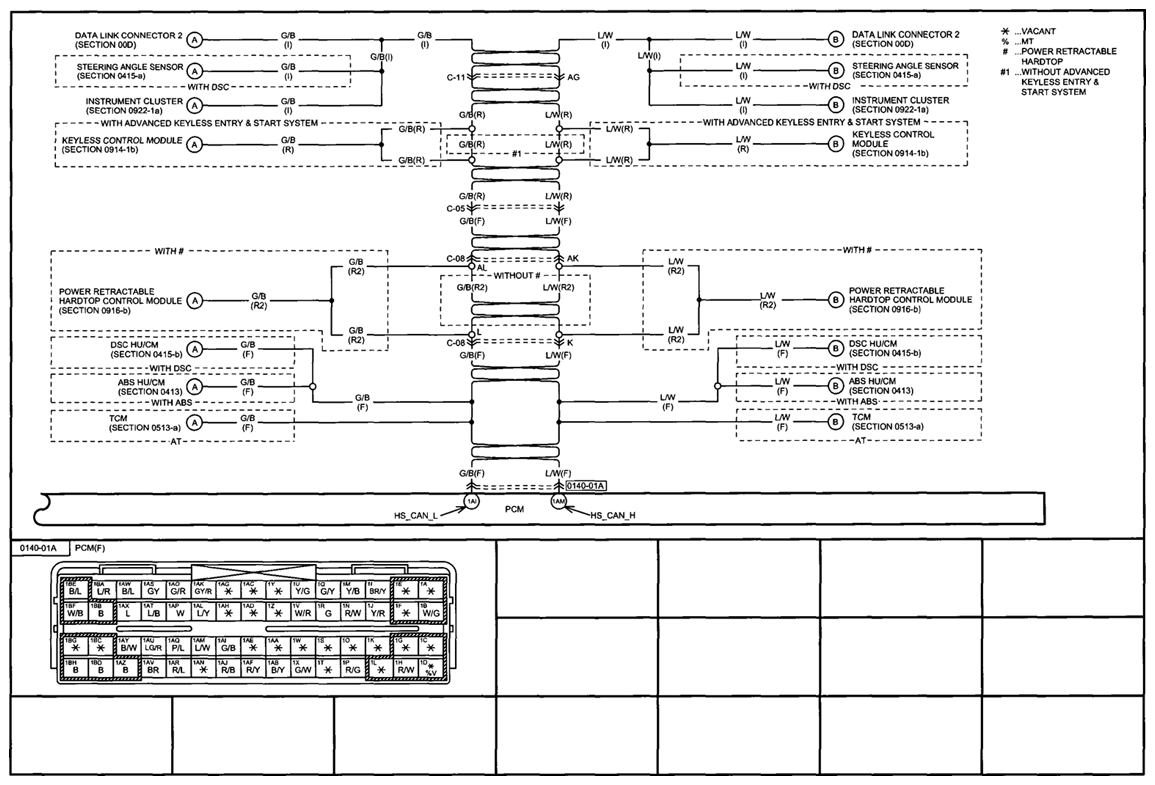

Fig 13: Engine Control System - Circuit Diagram (0140-G)
G09757692Courtesy of MAZDA MOTORS CORP.

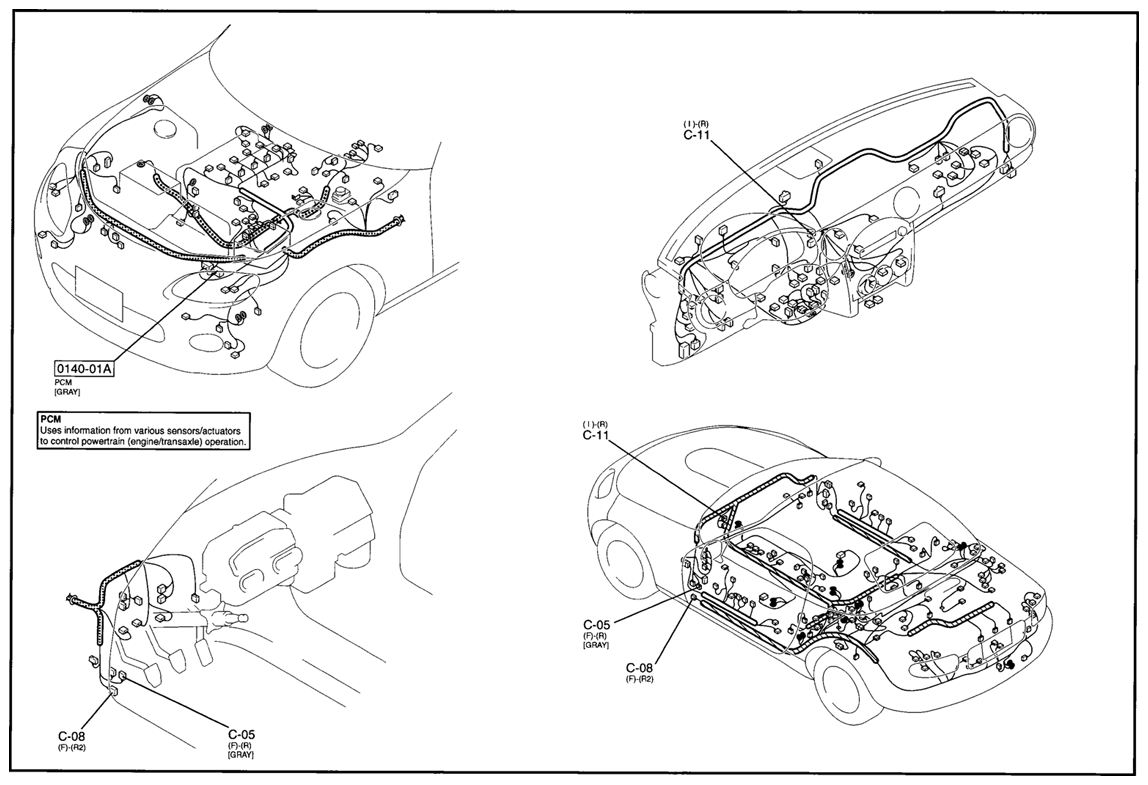

Fig 14: Engine Control System Wiring Harness Layout (0140-G)
G09757693Courtesy of MAZDA MOTORS CORP.
