Hatchback (5HB)
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the rear combination light. (Refer to REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
- Remove the rear bumper. (Refer to REAR BUMPER REMOVAL/INSTALLATION .)

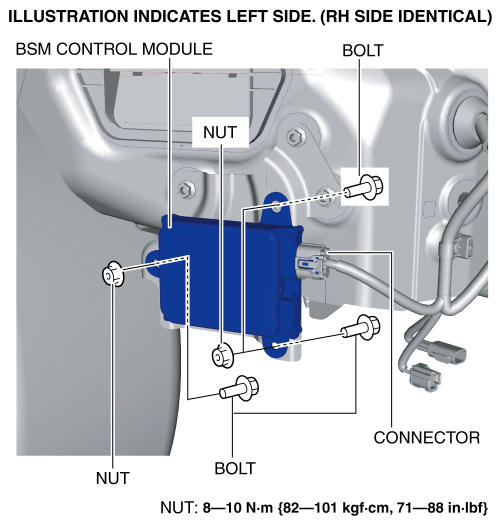

- Disconnect the connector.
- Remove the nuts.
- Remove the bolts.
- Remove the BSM control module.
- Install in the reverse order of removal.
- Perform the BSM radar test. (Refer to BLIND SPOT MONITORING (BSM) RADAR TEST .)CAUTION:
- If the BSM control module is replaced, not performing the BSM radar test will cause a deviation in the radar emission angle which could result in the system not detecting a vehicle approaching from the rear correctly. If the BSM control module is replaced, perform the BSM radar test.
