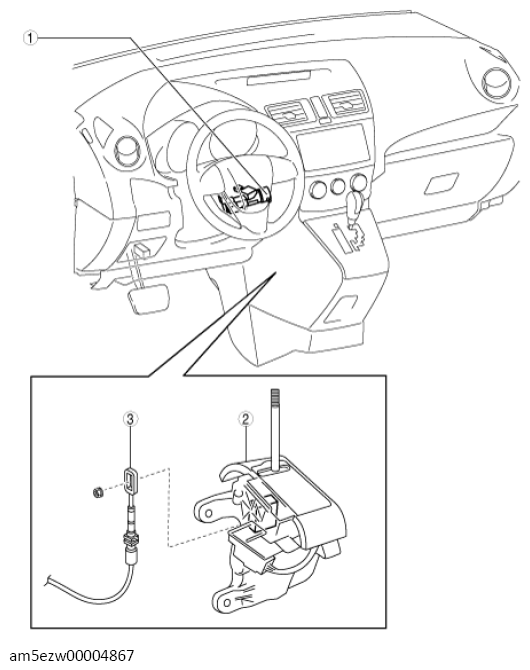

Automatic Transaxle Shift Mechanism Location Index

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Steering lock (See KEY INTERLOCK SYSTEM INSPECTION .)
2	Selector lever component (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .) (See SELECTOR LEVER INSPECTION .) (See SHIFT-LOCK SYSTEM INSPECTION .)
3	Selector cable (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
