Clutch Pedal Position (CPP) Switch Inspection: Notes

Verify that the CPP switch is installed properly.
Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the CPP switch connector.

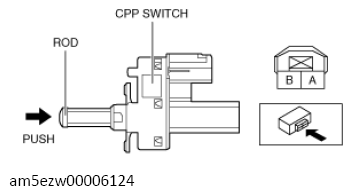

Inspect for continuity between CPP switch terminals A and B.

G13726868

Courtesy of MAZDA MOTORS CORP.

If not as specified, replace the CPP switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION [G66M-R] .)
