Short-cord Assembly Note

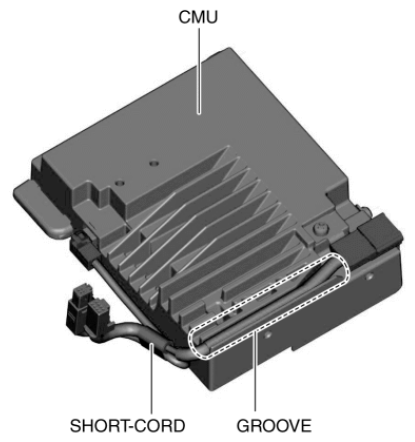

Fig 1: Identifying CMU, Short Cord And Groove
G10988144Courtesy of MAZDA MOTORS CORP.
