DTC U3003-16;U3003-17;U3003-1C: Notes

DTC	U3003:16, U3003:17, U3003:1C		Power supply system
DETECTION CONDITION		U3003:16 The vehicle speed exceeds 3 km/h {2 mph} and the voltage at DSC HU/CM terminal AG is less than 10 V . U3003:17 The voltage at DSC HU/CM terminal AG is 16 V or more . U3003:1C Low ignition voltage (10 V or less ) is detected at the voltage monitor of the solenoid valve or motor monitor. The ABS wheel speed sensor power supply for all four wheels decreases for a continuous 60 s with the voltage at DSC HU/CM terminal AF is 10 V or less .
FAIL-SAFE FUNCTION		Refer to "Fail-safe Function Malfunction Contents". (See DTC TABLE [DYNAMIC STABILITY CONTROL (DSC)] .)

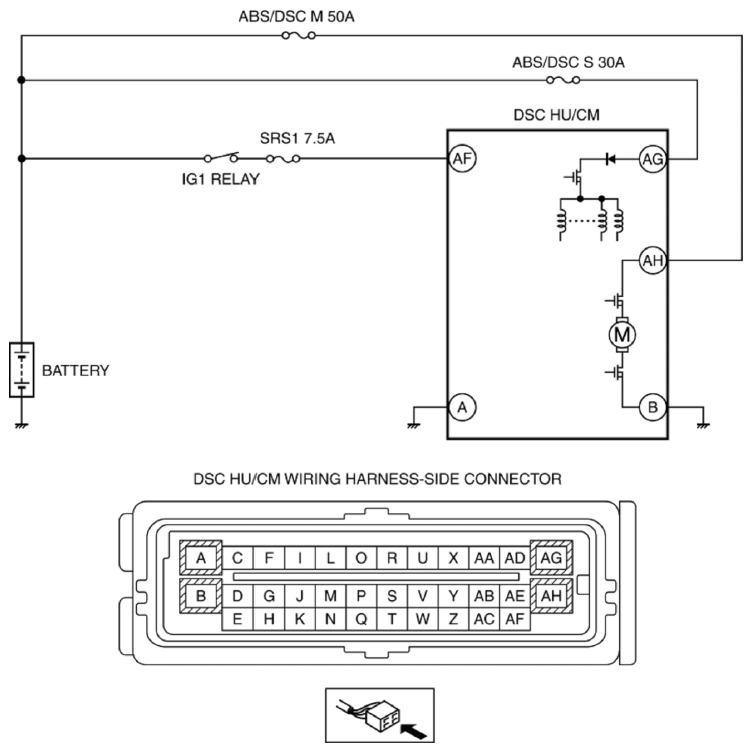

POSSIBLE CAUSE		Malfunction of fuse (ABS/DSC M 50A or ABS/DSC S 30A) Open or short circuit in wiring harness between DSC HU/CM terminal AG and battery Open circuit in wiring harness between DSC HU/CM terminal A and body ground Battery deterioration Generator malfunction Poor connection at connectors (female terminal)
