Stator Coil Disassembly/Assembly Note

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

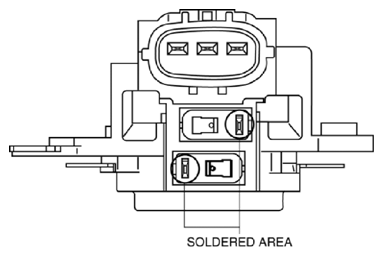

Fig 1: Identifying Stator Coil Soldered Area
G10985530Courtesy of MAZDA MOTORS CORP.
