Oil Pan Installation Note

1. Completely clean and remove any oil, dirt, sealant or other foreign matter that may be adhering to the cylinder block and oil pan.
2. When reusing the oil pan installation bolts, clean any old sealant from the bolts.
   CAUTION:

   1. Apply the silicon sealant in a single, unbroken line around the whole perimeter.
   2. To prevent silicone sealant from hardening, adhere the oil pan to the cylinder block within 10 min after silicone sealant is applied. Tighten the installation bolts completely soon after adhering.
   3. Using bolts with the old silicone sealant adhering could cause cracks in the cylinder block.
   Fig 1: Caution For Using Bolts With Old Silicone Sealant

   Courtesy of MAZDA MOTORS CORP.
3. Apply silicone sealant to the oil pan along the inside of the bolt holes as shown in the figure.
   CAUTION:

   • For SKYACTIV-G 2.5, also apply silicone sealant to the cylinder block.

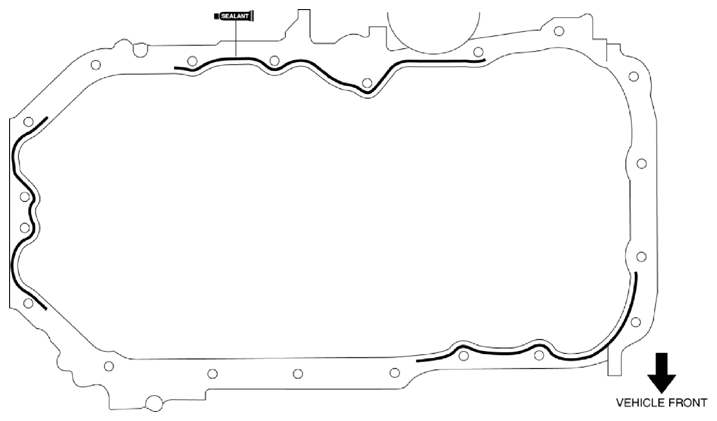

   Fig 2: Identifying Silicone Sealant Applying Area - Oil Pan

   Courtesy of MAZDA MOTORS CORP.

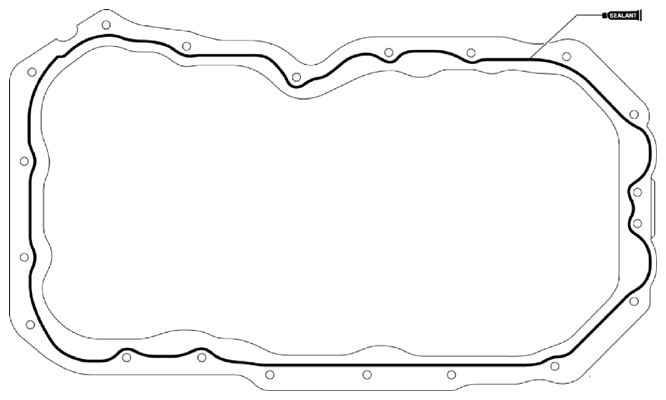

   Fig 3: Identifying Silicone Sealant Applying Area - Cylinder Block

   Courtesy of MAZDA MOTORS CORP.

   Thickness

   1. 3.0-7.0 mm {0.12-0.27 in}
4. Install the oil pan using the following procedure:

Fig 4: Caution For Silicon Sealant Removal

Courtesy of MAZDA MOTORS CORP.

1. Install the oil pan to the cylinder block.
2. Temporarily tighten the two bolts shown in the figure.
   Fig 5: Identifying Oil Pan Bolts

   Courtesy of MAZDA MOTORS CORP.

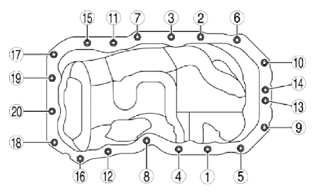

3. Tighten the bolts in the order shown in the figure

Fig 6: Oil Pan Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

Tightening torque

1. 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
