Solar Radiation Sensor Removal/Installation: Notes

NOTE:

When removing the solar radiation sensor, perform the procedure in the posture shown in the figure.

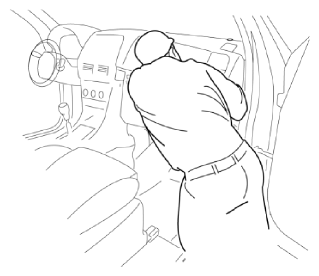

Fig 1: Removing Solar Radiation Sensor

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the following parts:
1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
5. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
6. Tuner and amp unit (TAU) (With Tuner and amp unit (TAU)) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .)
7. Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION .)
Press out (1) the tab of the solar radiation sensor from the inside of the dashboard using a flathead screwdriver as shown in the figure.

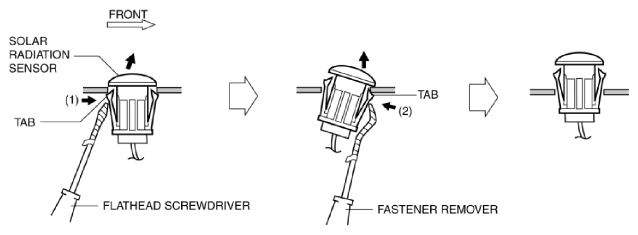

Fig 2: Pressing Out Tab Of Solar Radiation Sensor
Courtesy of MAZDA MOTORS CORP.
Press (2) the tab using a fastener remover as shown in the figure and press out the solar radiation sensor from the inside of the dashboard.
Disconnect the solar radiation sensor connector.

Fig 3: Disconnecting Solar Radiation Sensor Connector
Courtesy of MAZDA MOTORS CORP.
Remove the solar radiation sensor.
Install in the reverse order of removal. (See SOLAR RADIATION SENSOR INSTALLATION NOTE .)
