Symptom Troubleshooting - Automatic Transmission
>>
Automatic Transaxle Control System Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Automatic Transaxle Control System Wiring Diagram

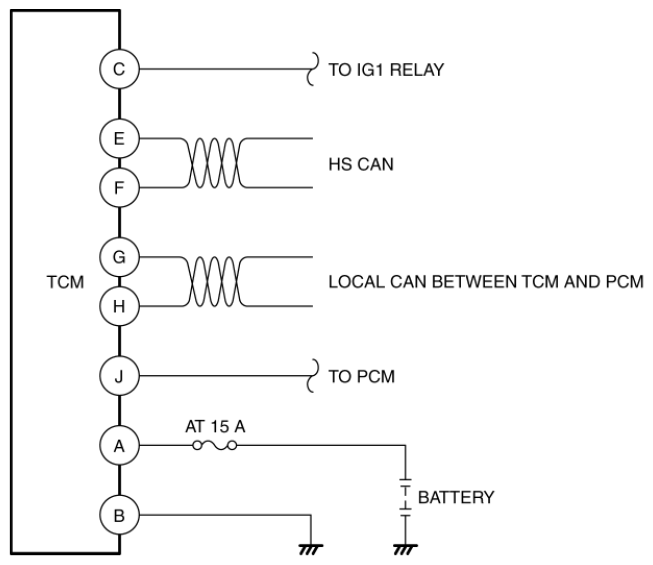

Fig 1: FW6A-EL Automatic Transaxle Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
