Continuity Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [C66M-R] .)
  3. Inspect for continuity between neutral switch terminal A and B.

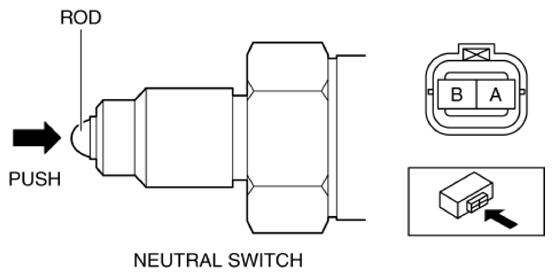

    Fig 1: Pushing Neutral Switch Rod
    G10985605Courtesy of MAZDA MOTORS CORP.
NEUTRAL SWITCH SPECIFICATION

Measured condition Continuity
Rod pushed Continuity detected
Rod not pushed No continuity
