Relay Location

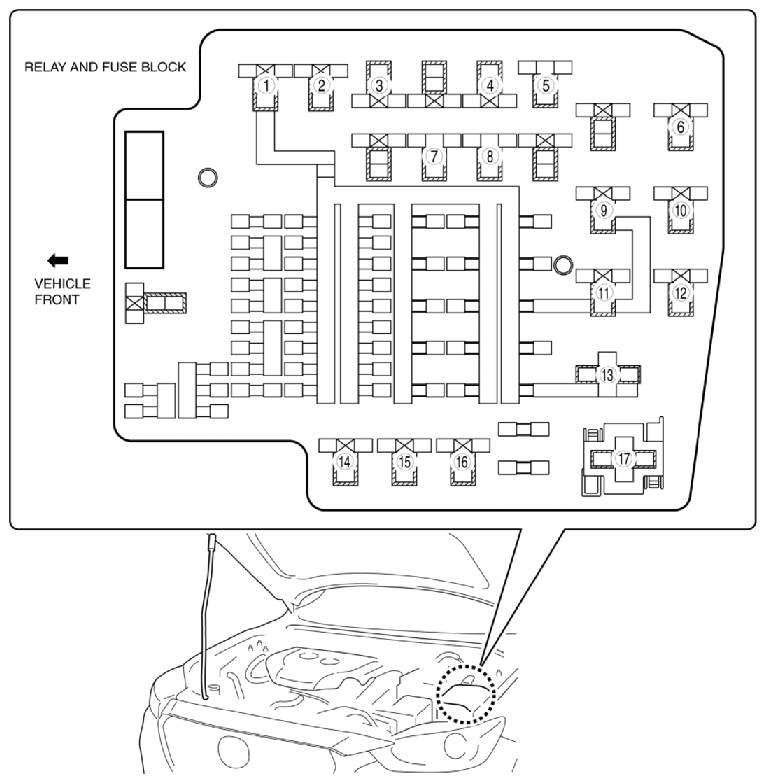

Fig 1: Relays And Fuse Block Relay Identification

Courtesy of MAZDA MOTORS CORP.

ENGINE ROOM RELAY BOX RELAY IDENTIFICATION

Relay Number	Relay Description
1	IG1 relay
2	A/C relay
3	Front fog light relay
4	Theft-deterrent relay
5	Brake light relay
6	Horn relay
7	Wiper INT relay
8	Wiper HI relay
9	Starter relay
10	Electric variable valve timing relay
11	ACC relay
12	Rear window defogger relay
13	Blower relay
14	Fuel pump relay
15	Fuel injector relay
16	Main relay
17	Cooling fan relay
