Clip Replacement Note

If the clip has been damaged, perform the following procedure.

Remove the rubber boot.

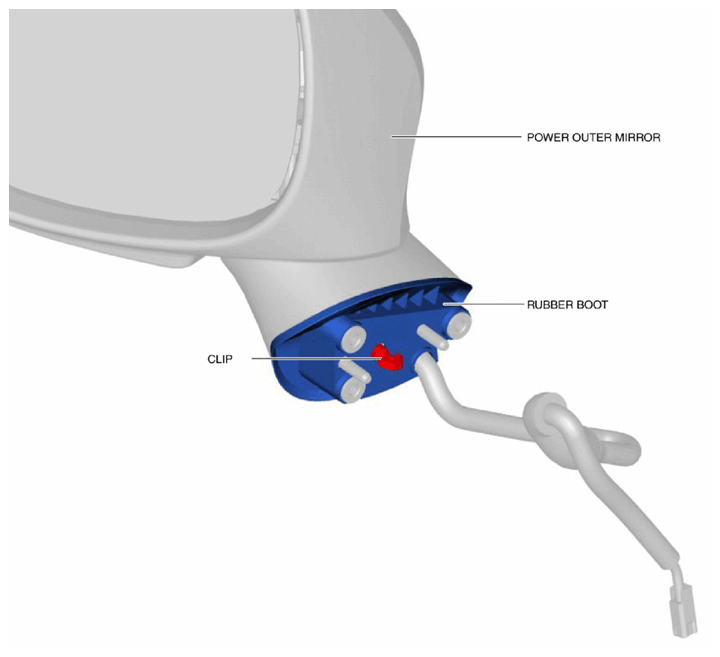

Fig 1: Identifying Power Outer Mirror, Rubber Boot And Clip
Courtesy of MAZDA MOTORS CORP.
Remove the screw.

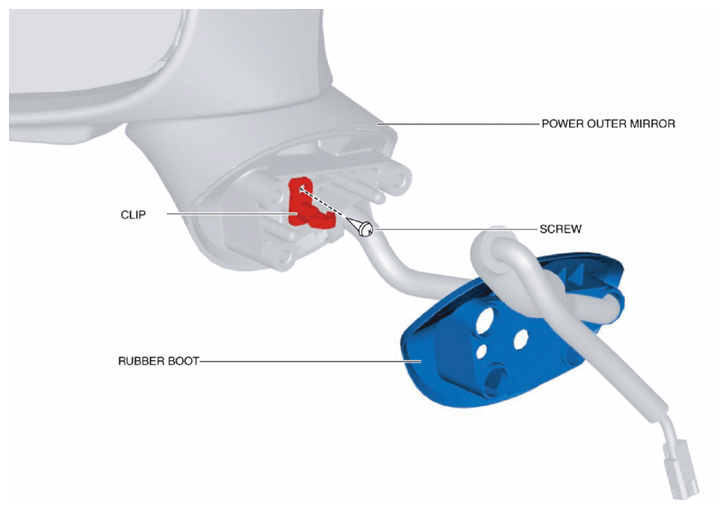

Fig 2: Identifying Power Outer Mirror, Rubber Boot, Screw And Clip
Courtesy of MAZDA MOTORS CORP.
Remove the clip.
Install in the reverse order of removal.
