Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.

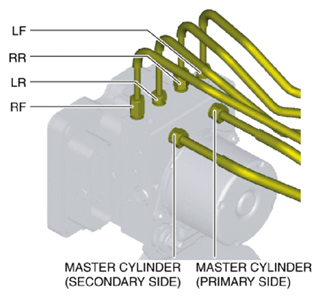

Fig 1: Identifying DSC HU/CM Brake Pipes
G10909727Courtesy of MAZDA MOTORS CORP.
