Exhaust System Removal / Installation: 2WD: Notes

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION / CONNECTION .)
Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL / INSTALLATION [SKYACTIV-G 2.0] .)
Remove in the order indicated in the procedure.
Remove the exhaust system insulator. (Refer to EXHAUST SYSTEM INSULATOR REMOVAL / INSTALLATION .)
Install in the reverse order of removal.
Step 1

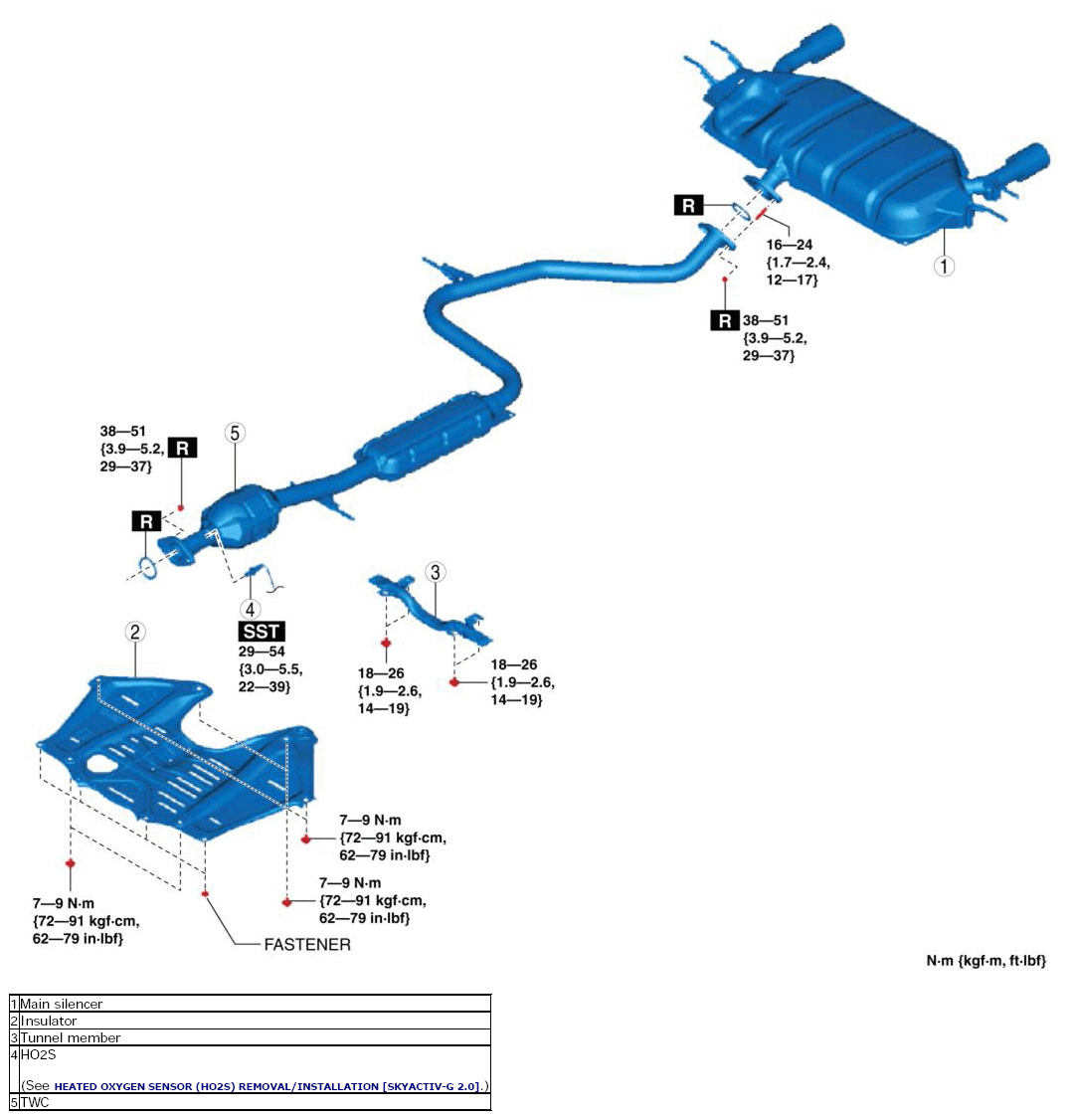

Fig 1: Exhaust System Replacement Components (2WD) With Torque Specifications (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Step 2

Fig 2: Exhaust System Replacement Components (2WD) With Torque Specifications (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
