Air Cleaner Element Removal/Installation: Notes

  1. Remove the air cleaner element as shown in the graphic.

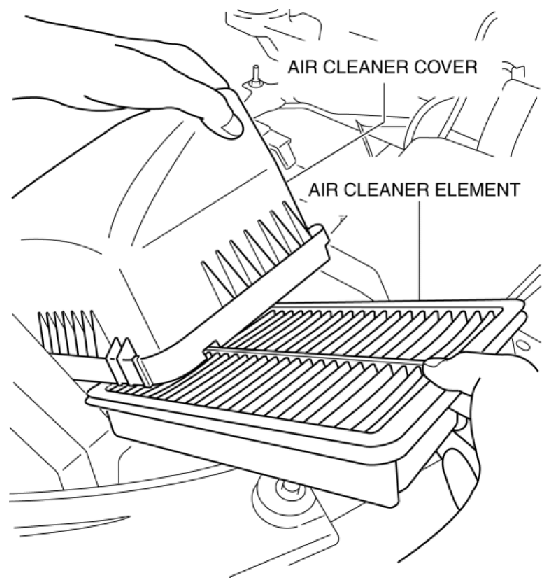

    Fig 1: Removing Air Cleaner Element
    G10968801Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal. (Refer to Air Cleaner Cover Installation Note .)
